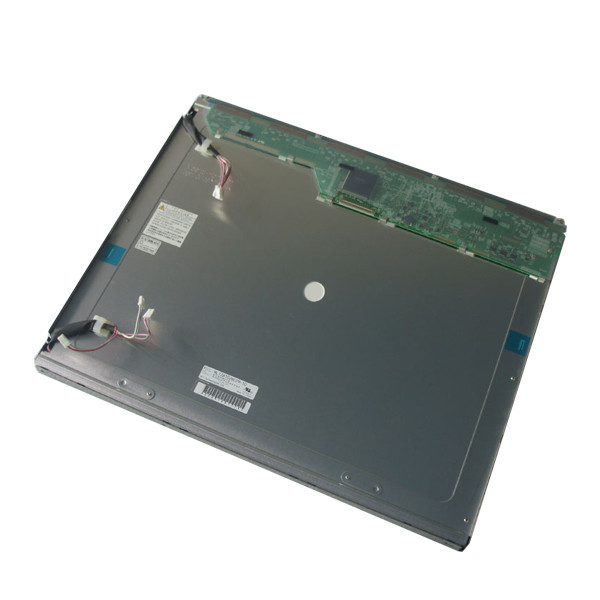

For Industrial Medical Imaging NL128102BC29-10 LCD Display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102BC29-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL128102BC29-10 | Diagonal Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 86PPI | Active Area: | 376.32(W)×301.056(H) Mm |
| Pixel Layout: | RGB Vertical Stripe | Luminance: | 300 Cd/m² (Typ.) |
| Response: | 800 : 1 (Typ.) (TM) | Used For: | Industrial Medical Imaging |
Product Description
For Industrial Medical Imaging NL128102BC29-10 LCD Display panel
NL128102BC29-10 LCD Panel Product details :
| NEC LCD Screen NL128102BC29-10 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL128102BC29-10 |
| Screen Size | 19.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1280(RGB)×1024, SXGA 86PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | - |
| Outline (mm) | 404.2(W)×330(H) ×24.1(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 10/10 (Typ.)(Tr/Td) |
| Best View on | Symmetry |
| Work Mode | UA-SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 6 pcs CCFL , 50K hours , Without Driver |
| Mass | 2.60/2.75Kgs (Typ./Max.) |
| Used for | Industrial Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Operating Temperature: 0 ~ 55 °C ; Storage Temperature: -20 ~ 60 °C |
| For Industrial Medical Imaging NL128102BC29-10 LCD Display panel | |
NL128102BC29-10 LCD Screen Why choose us?
We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.
1. Bulk orders will be provided to you at an acceptable low price.
2. Wide range of parts, please visit our store to see more.
3. Fast Delivery-Most items will be shipped within 24 hours.
4. Provide extensive after-sales support through messages, emails, etc.
5. Friendly return policy.
NL128102BC29-10 LCD Screen Specifications :
Designed as a seamless replacement for your existing screen, the NL128102BC29-10 LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.
Before making your purchase, we highly recommend examining the provided picture to verify that the NL128102BC29-10 LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.
NL128102BC29-10 LCD Panel Shipping and Package :
NL128102BC29-10 LCD Screen Quality & Warranty:
In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.
We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.
Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.
NL128102BC29-10 LCD Panel FAQ :
Q: How can I trace my order of NL128102BC29-10 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of NL128102BC29-10 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of NL128102BC29-10 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NL128102BC29-10 ?
A: Of course!If you make a large order, we will give you a discount.
