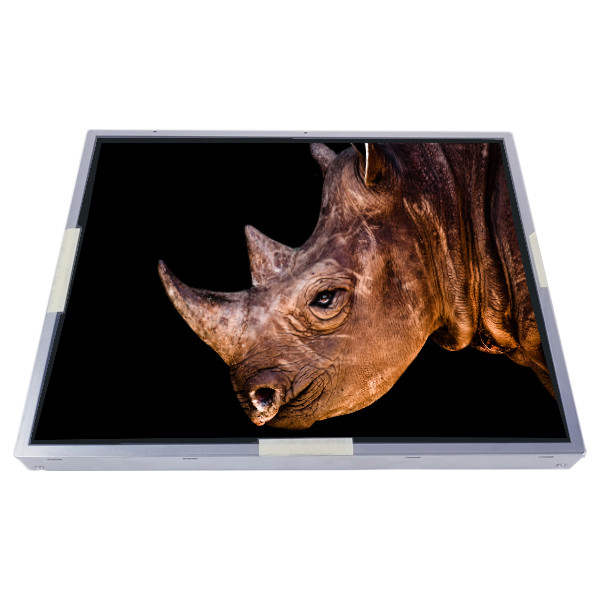

50 pins NL128102BC28-09 Industrial LCD Display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102BC28-09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL128102BC28-09 | Diagonal Size: | 18.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 90PPI | Active Area: | 359.04(W)×287.232(H) Mm |
| Pixel Layout: | RGB Vertical Stripe | Refresh Rate: | 60Hz |
| Luminance: | 240 Cd/m² (Typ.) | Used For: | Desktop Monitor Industrial |
Product Description
50 pins NL128102BC28-09 Industrial LCD Display panel
NL128102BC28-09 LCD Panel Product details :
| NEC LCD Screen NL128102BC28-09 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL128102BC28-09 |
| Screen Size | 18.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 90PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 359.04(W)×287.232(H) mm |
| Bezel Opening | 366.0(W)×294.2(H) mm |
| Outline (mm) | 383 × 310.2 × 25.5 (H×V×D) |
| Treatment | Hard coating (2H) |
| Luminance | 240 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 17/16 (Typ.)(Tr/Td) ms |
| Best View on | Symmetry |
| Work Mode | Normally Black, Transmissive |
| Color Depth | 16.7M 60% NTSC |
| Backlight | 6 pcs CCFL , No Driver |
| Mass | 2.94/3.10Kgs (Typ./Max.) |
| Used for | Desktop Monitor Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 55 °C |
| 50 pins NL128102BC28-09 Industrial LCD Display panel | |
NL128102BC28-09 LCD Screen Why choose us?
We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.
1. Bulk orders will be provided to you at an acceptable low price.
2. Wide range of parts, please visit our store to see more.
3. Fast Delivery-Most items will be shipped within 24 hours.
4. Provide extensive after-sales support through messages, emails, etc.
5. Friendly return policy.
NL128102BC28-09 LCD Screen Specifications :
Designed as a seamless replacement for your existing screen, the NL128102BC28-09 LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.
Before making your purchase, we highly recommend examining the provided picture to verify that the NL128102BC28-09 LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.
NL128102BC28-09 LCD Panel Shipping and Package :
NL128102BC28-09 LCD Screen Quality & Warranty:
In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.
We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.
Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.
NL128102BC28-09 LCD Panel FAQ :
Q: How to make payment of NL128102BC28-09 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of NL128102BC28-09 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL128102AC31-02E to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of NL128102AC31-02E via credit card ?
A: Yes!you can use your credit card through your Paypal account.
