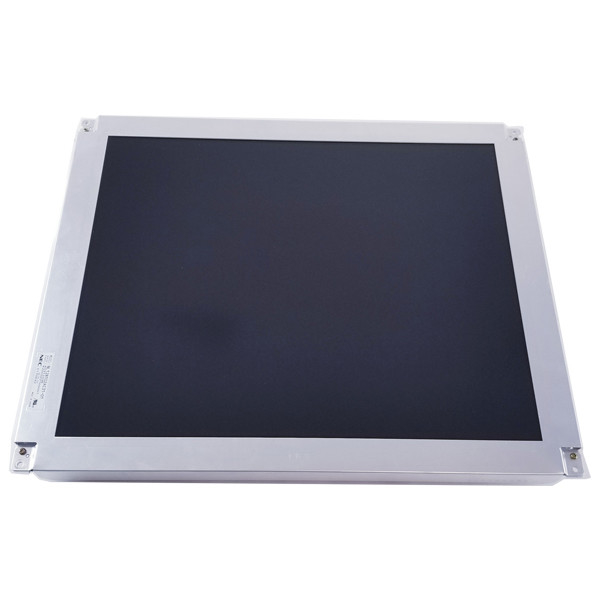

20.1 inch For Industrial NL128102AC31-01B LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102AC31-01B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL128102AC31-01B | Diagonal Size: | 20.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 81PPI | Active Area: | 399.36(W)×319.488(H) Mm |
| Pixel Layout: | RGB Vertical Stripe | Luminance: | 150 Cd/m² (Typ.) |
| Contrast Ratio: | 220:1 (Typ.) (TM) | Used For: | Desktop Monitor Industrial |
Product Description
20.1 inch For Industrial NL128102AC31-01B LCD Screen Display
NL128102AC31-01B LCD Panel Product details :
| NEC LCD Screen NL128102AC31-01B | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL128102AC31-01B |
| Screen Size | 20.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 81PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 399.36(W)×319.488(H) mm |
| Bezel Opening | 404.8(W)×325.0(H) mm |
| Outline (mm) | 470.5 × 382 × 48 (H×V×D) |
| Treatment | - |
| Luminance | 150 cd/m² (Typ.) |
| Contrast Ratio | 220 : 1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 58 (Typ.)(Tr) ms |
| View Direction | - |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | Full color 40% NTSC |
| Backlight | 10 pcs CCFL , With Inverter |
| Mass | 3.56/3.60Kgs (Typ./Max.) |
| Used for | Desktop Monitor Industrial |
| Refresh Rate | - |
| Touchscreen | - |
| Signal Type | Analog RGB Connector |
| Voltage Supply | 12.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C- |
| 20.1 inch For Industrial NL128102AC31-01B LCD Screen Display | |
NL128102AC31-01B LCD Screen Why choose us?
We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.
1. Bulk orders will be provided to you at an acceptable low price.
2. Wide range of parts, please visit our store to see more.
3. Fast Delivery-Most items will be shipped within 24 hours.
4. Provide extensive after-sales support through messages, emails, etc.
5. Friendly return policy.
NL128102AC31-01B LCD Screen Specifications :
Designed as a seamless replacement for your existing screen, the NL128102AC31-01B LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.
Before making your purchase, we highly recommend examining the provided picture to verify that the NL128102AC31-01B LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.
NL128102AC31-01B LCD Panel Shipping and Package :
NL128102AC31-01B LCD Screen Quality & Warranty:
In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.
We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.
Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.
NL128102AC31-01B LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of NL128102AC31-01B ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of NL128102AC31-01B ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of NL128102AC31-01B ?
A: Of course!sample order is welcome !
Q: Can I pay my order of NL128102AC31-01B via credit card ?
A: Yes!you can use your credit card through your Paypal account.
