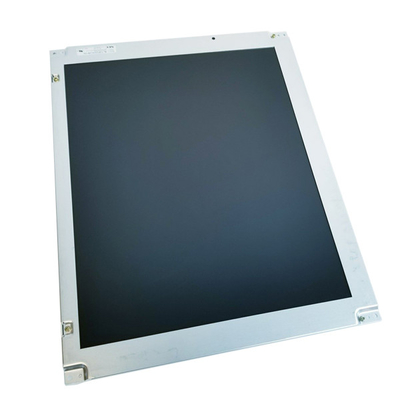

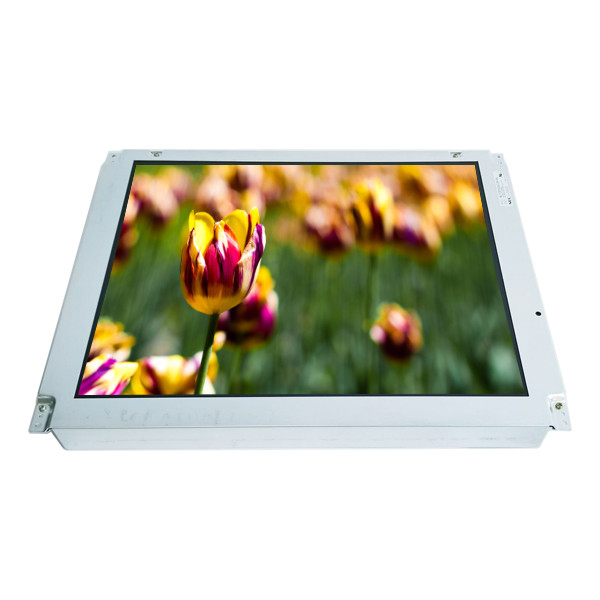

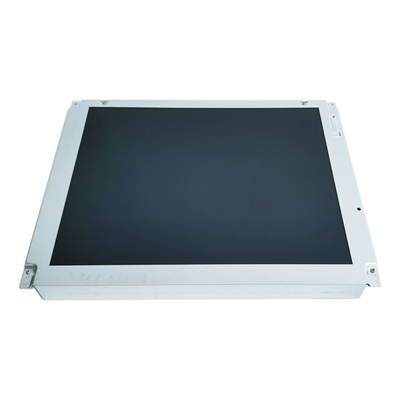

18.1 inch lcd Display Screen NL128102AC28-04 for Desktop Monitor Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102AC28-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL128102AC28-04 | Screen Size: | 18.1'' |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×1024, SXGA 90PPI | Display Area: | 359.04(W)×287.232(H) Mm |
| Pixel Layout: | RGB Vertical Stripe | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | ||
Product Description
18.1 inch lcd Display Screen NL128102AC28-04 forDesktop Monitor Industrial
Product details :
| NEC LCD Screen NL128102AC28-04 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL128102AC28-04 |
| Screen Size | 18.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 90PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 359.04(W)×287.232(H) mm |
| Bezel Opening | 364.0(W)×292.2(H) mm |
| Outline (mm) | 424(H)×337(V) ×40(D) mm |
| Treatment | Hard coating (3H), Antireflection |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 40/35 (Typ.)(Tr/Td) |
| Best View on | - |
| Work Mode | Normally Black, Transmissive |
| Color Depth | 16.7M 60% NTSC |
| Backlight | CCFL [8 pcs] , With Inverter |
| Mass | 1.95/2.00Kgs (Typ./Max.) |
| Used for | Desktop Monitor Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Operating Temperature: 0 ~ 55 °C ; Storage Temperature: -20 ~ 60 °C |
| 18.1 inch lcd Display Screen NL128102AC28-04F forDesktop Monitor Industrial | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
Shipping:
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.
FAQ:
Q: Can I pay my order of NL128102AC28-04 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL128102AC28-04 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL128102AC28-04 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods NL128102AC28-04?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
