17.0 inch 96PPI NL128102AC26-01 LCD Display screen

Brand Name:	NEC
Model Number:	NL128102AC26-01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

NL128102AC26-01

Panel Size:

17.0"

Resolution:

1280(RGB)×1024, SXGA 96PPI

Active Area:

337.92(W)×270.336(H) Mm

Luminance:

400 Cd/m² (Typ.)

Pixel Layout:

RGB Vertical Stripe

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

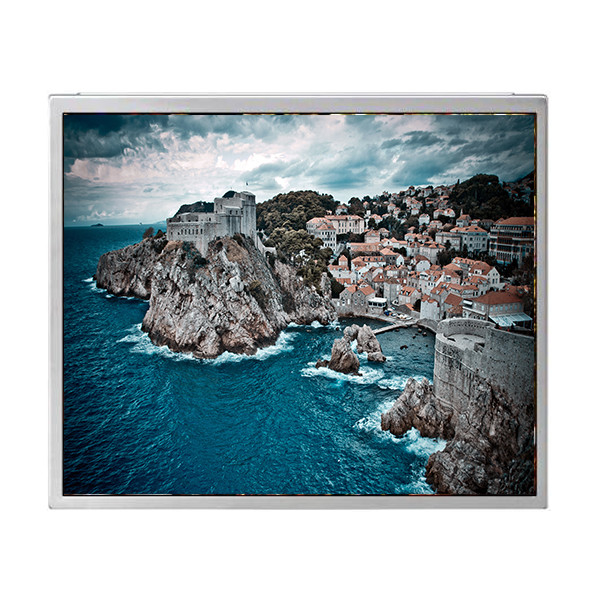

17.0 inch 96PPI NL128102AC26-01 LCD Display screen

NL128102AC26-01 Product details :

NLT LCD Screen NL128102AC26-01
Manufacturer	NLT
Model Name	NL128102AC26-01
Screen Size	17.0 inch
Panel Type	a-Si TFT-LCD, LCM
Number of pixels	1280(RGB)×1024, SXGA 96PPI
Pixel layout	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm
Bezel Opening	341.6(W)×274.0(H) mm
Outline (mm)	358.5(W)×296.5(H) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td)
Best View on	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 72% NTSC
Backlight	WLED , 50K hours , With LED Driver
Mass	1.90Kgs (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
17.0 inch 96PPI NL128102AC26-01 LCD Display screen

NL128102AC26-01 Product Description:

We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.

NL128102AC26-01 Contact us:

All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.

NL128102AC26-01 Payment Methods :

We accept T/T, West Union, PayPal , Escrow payment .

NL128102AC26-01 About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

NL128102AC26-01 Refound or Replacement:

We accept return back itmes if the goods still remain in their original condition on the warranty time .

NL128102AC26-01 FAQ:

Q: How long will I receive my goods NL128102AC26-01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of NL128102AC26-01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of NL128102AC26-01 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of NL128102AC26-01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

NL128102AC26-01 Shippment & Packing:

17.0 inch 96PPI NL128102AC26-01 LCD Display screen 0
