LCD Screen Display Panel

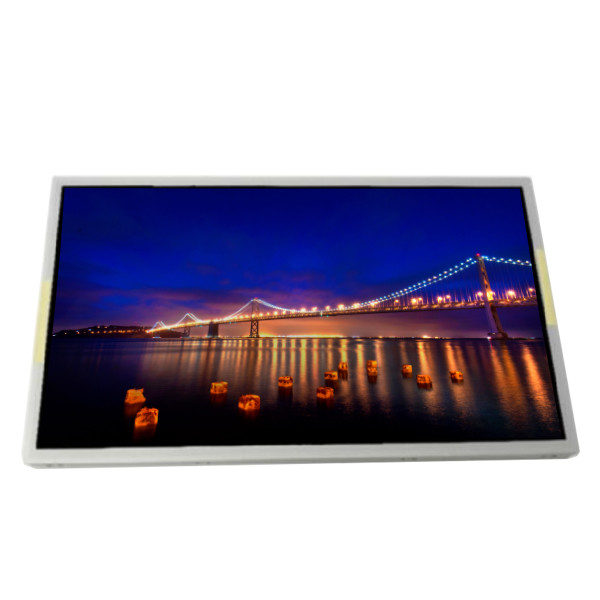

For Desktop Monitor NL128102AC23-02A LCD Display screen

All Category

Floor Standing Digital Signage

For Desktop Monitor NL128102AC23-02A LCD Display screen

Brand Name:	NEC
Model Number:	NL128102AC23-02A
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Panel Model:

NL128102AC23-02A

Panel Size:

15.4"

Resolution:

1280(RGB)×1024, SXGA 106PPI

Active Area:

305.28(W)×244.224(H) Mm

Luminance:

200 Cd/m² (Typ.)

Pixel Layout:

RGB Vertical Stripe

Contrast Ratio:

200:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

For Desktop Monitor NL128102AC23-02A LCD Display screen

NL128102AC23-02A Product details :

NEC LCD Screen NL128102AC23-02A
Manufacturer	NEC
Model Name	NL128102AC23-02A
Screen Size	15.4inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 106PPI
Pixel layout	RGB Vertical Stripe
Active Area	305.28(W)×244.224(H) mm
Bezel Opening	310.0(W)×248.9(H) mm
Outline (mm)	350(H)×284.8(V) ×21.5(D) mm
Treatment	-
Luminance	200 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ.) (TM)
Viewing angle	60/60/50/45 (Typ.)(CR≥10)
Response	7 /37(Typ.)(Tr)
View Direction	-
Work Mode	TN, Normally White, Transmissive
Color Depth	Full color 59% NTSC
Backlight	CCFL [4 pcs] , With Inverter
Mass	1.70/1.76Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	-
Touchscreen	Without
Signal Type	Analog RGB Connector
Voltage Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²)
For Desktop Monitor NL128102AC23-02A LCD Display screen

NL128102AC23-02A Product Description:

We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.

NL128102AC23-02A Contact us:

All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.

NL128102AC23-02A Payment Methods :

We accept T/T, West Union, PayPal , Escrow payment .

NL128102AC23-02A About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

NL128102AC23-02A Refound or Replacement:

We accept return back itmes if the goods still remain in their original condition on the warranty time .

NL128102AC23-02A FAQ:

Q: Can You declare my order of NL128102AC23-02A at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of NL128102AC23-02A?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of NL128102AC23-02A?

A: Of course!If you make a large order, we will give you a discount.

Q: If I order NL128102AC23-02A now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

NL128102AC23-02A Shippment & Packing:

For Desktop Monitor NL128102AC23-02A LCD Display screen 0
