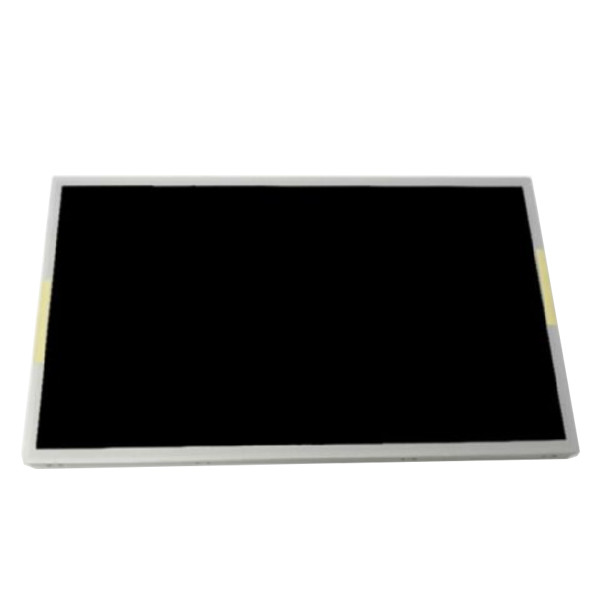

12.0V Typ NL128102AC23-02 LCD Display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102AC23-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL128102AC23-02 | Panel Size: | 15.4" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 106PPI | Active Area: | 305.28(W)×244.224(H) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Contrast Ratio: | 200:1 (Typ.) (TM) | ||
Product Description
12.0V Typ NL128102AC23-02 LCD Display screen
NL128102AC23-02 Product details :
| NEC LCD Screen NL128102AC23-02 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL128102AC23-02 |
| Screen Size | 15.4inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 106PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 305.28(W)×244.224(H) mm |
| Bezel Opening | 310.0(W)×248.9(H) mm |
| Outline (mm) | 350(H)×284.8(V) ×21.5(D) mm |
| Treatment | - |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) (TM) |
| Viewing angle | 60/60/50/45 (Typ.)(CR≥10) |
| Response | 7 (Typ.)(Tr) |
| View Direction | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color 59% NTSC |
| Backlight | CCFL [4 pcs] , With Inverter |
| Mass | 1.56/1.62Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Analog RGB Connector |
| Voltage Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 12.0V Typ NL128102AC23-02 LCD Display screen | |
NL128102AC23-02 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL128102AC23-02 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL128102AC23-02 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL128102AC23-02 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL128102AC23-02 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL128102AC23-02 FAQ:
Q: Can You declare my order of NL128102AC23-02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity o f NL128102AC23-02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NL128102AC23-02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods NL128102AC23-02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
