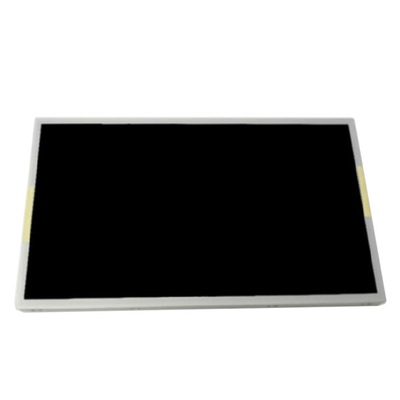

NL128102AC23-01A LCD Display Panel for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102AC23-01A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL128102AC23-01A | Panel Size: | 15.4" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 106PPI | Active Area: | 305.28(W)×244.224(H) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Contrast Ratio: | 200:1 (Typ.) (TM) | ||
Product Description
NL128102AC23-01A LCD Display Panel for Desktop Monitor
NL128102AC23-01A Product details :
| NEC LCD Screen NL128102AC23-01A | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL128102AC23-01A |
| Screen Size | 15.4inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 106PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 305.28(W)×244.224(H) mm |
| Bezel Opening | - |
| Outline (mm) | 350(W)×284.8(H) mm |
| Treatment | - |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) (TM) |
| Viewing angle | - |
| Response | - |
| View Direction | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color |
| Backlight | CCFL [4 pcs] |
| Mass | 1.90Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | - |
| Touchscreen | - |
| Signal Type | Analog RGB |
| Voltage Supply | - |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| NL128102AC23-01A LCD Display Panel for Desktop Monitor | |
NL128102AC23-01A Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL128102AC23-01A Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL128102AC23-01A Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL128102AC23-01A About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL128102AC23-01A Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL128102AC23-01A FAQ:
Q: Can you give me a discount if I need a large quantity of NL128102AC23-01A?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL128102AC23-01A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NL128102AC23-01A?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
NL128102AC23-01A Shippment & Packing:
