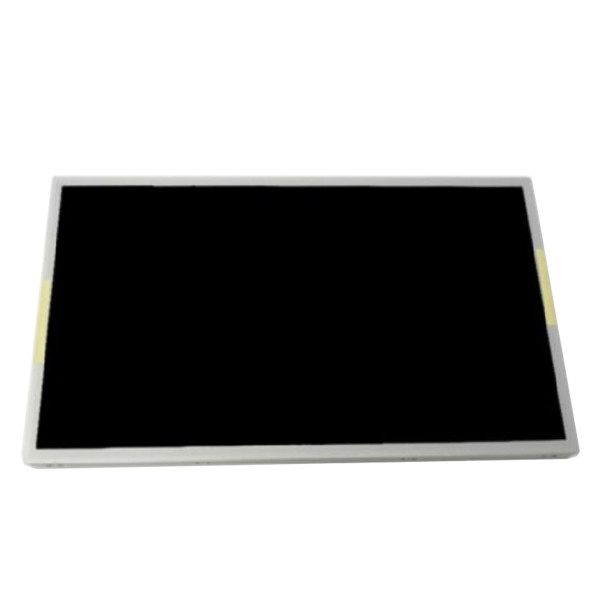

1280*1024 NL128102AC20-07 LCD Display Panel for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL128102AC20-07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL128102AC20-07 | Panel Size: | 13.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 126PPI | Active Area: | 257.3(W)×205.8(H) Mm |
| Panel Type: | A-Si TFT-LCD, LCM | Pixel Layout: | RGB Vertical Stripe |
| Viewing Angle: | 45/45/20/25 (Typ.)(CR≥10) | ||
Product Description
1280*1024 NL128102AC20-07 LCD Display Panel for Industrial
NL128102AC20-07 Product details :
| NEC LCD Screen NL128102AC20-07 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL128102AC20-07 |
| Screen Size | 13.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 126PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 257.3(W)×205.8(H) mm |
| Bezel Opening | 263.0(W)×211.0(H) mm |
| Outline (mm) | 310(W)×255(H) ×27(D) mm |
| Treatment | - |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing angle | 45/45/20/25 (Typ.)(CR≥10) |
| Response | 40 (Max.)(Tr) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color 40% NTSC |
| Backlight | 4 pcs CCFL , With Inverter |
| Mass | 1.15/1.20Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Analog RGB , 31 pins Connector |
| Voltage Supply | 3.3/12V (Typ.)(VCC/VDD) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 1280*1024 NL128102AC20-07 LCD Display Panel for Industrial | |
NL128102AC20-07 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL128102AC20-07 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL128102AC20-07 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL128102AC20-07 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL128102AC20-07 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL128102AC20-07 FAQ:
Q: How can I trace my order of NL128102AC20-07 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of NL128102AC20-07 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NL128102AC20-07 via credit card ?
A: Yes!you can use your credit card through your Paypal account
NL128102AC20-07Shippment & Packing:
