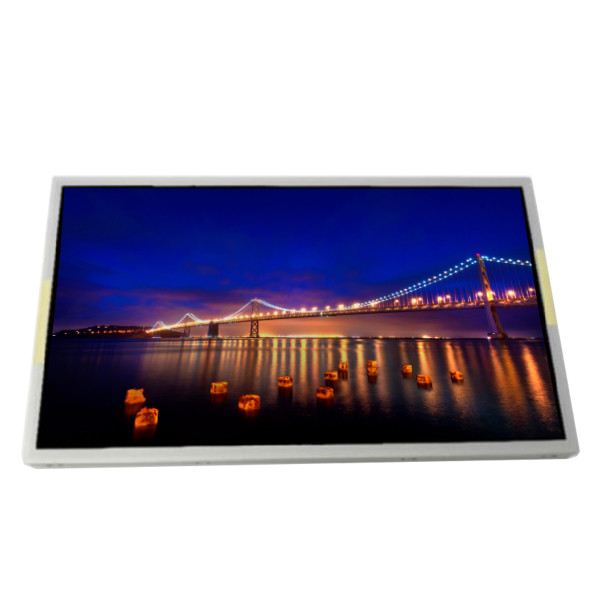

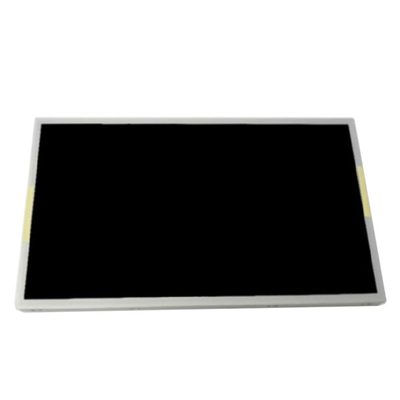

For Industrial Outdoor High Brightness NL13676BC25-07F LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL13676BC25-07F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL13676BC25-07F | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 100PPI | Active Area: | 344.232(W)×193.536(H) Mm |
| Luminance: | 1250 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | ||
Product Description
For Industrial Outdoor High Brightness NL13676BC25-07F LCD Display Panel
NL13676BC25-07F Product details :
| NLT LCD Screen NL13676BC25-07F | |
|---|---|
| Manufacturer | NLT |
| Model Name | NL13676BC25-07F |
| Screen Size | 15.6inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 347.55(W)×196.85(H) mm |
| Outline (mm) | 363.8(W)×215.9(H)×13.15(D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1250 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/15 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 60% NTSC |
| Backlight | 6 strings WLED , 7K hours , No Driver |
| Mass | 1.07/1.17Kgs (Typ./Max.) |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touch screen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| For Industrial Outdoor High Brightness NL13676BC25-07F LCD Display Panel | |
NL13676BC25-07F Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL13676BC25-07F Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL13676BC25-07F Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL13676BC25-07F About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL13676BC25-07F Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL13676BC25-07F FAQ:
Q: If I place order now,when will you ship the goods of NL13676BC25-07F ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of NL13676BC25-07F ?
A: Of course!sample order is welcome !
Q: How to make payment of NL13676BC25-07F ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of NL13676BC25-07F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
NL13676BC25-07F Shippment & Packing
