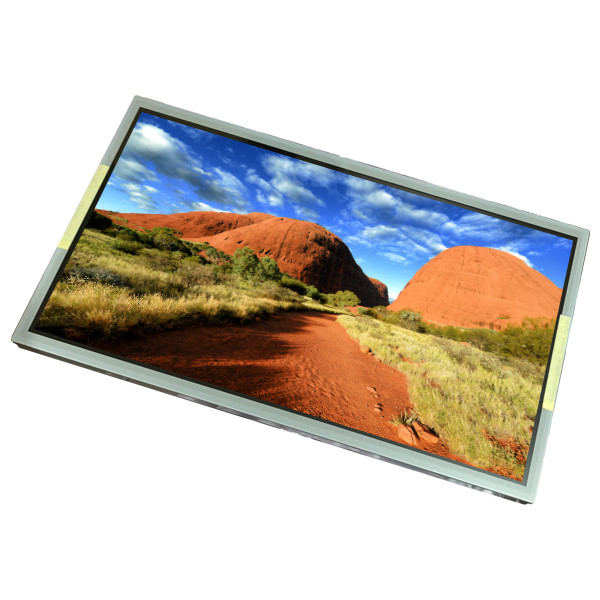

Industry 15.6 inch NL13676AC25-05D LCD Display Panel

Brand Name:	NEC
Model Number:	NL13676AC25-05D
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

NL13676AC25-05D

Panel Size:

15.6"

Resolution:

1366(RGB)×768, WXGA 100PPI

Active Area:

344.232(W)×193.536(H) Mm

Luminance:

400 Cd/m² (Typ.)

Pixel Layout:

RGB Vertical Bar

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

Industry 15.6 inch NL13676AC25-05D LCD Display Panel

NL13676AC25-05D Product details :

NLT LCD Screen NL13676AC25-05D
Manufacturer	NLT
Model Name	NL13676AC25-05D
Screen Size	15.6inch
Panel Type	a-Si TFT-LCD, LCM
Number of pixels	1366(RGB)×768, WXGA 100PPI
Pixel layout	RGB vertical bar
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	347.5(W)×196.8(H) mm
Outline (mm)	363.8×215.9 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	900 : 1 (Typ.) (TM)
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
Response	3/15 (Typ.)(Tr/Td)
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 60% NTSC
Backlight	WLED , 50K hours , With LED Driver
Mass	800/880g (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Industry 15.6 inch NL13676AC25-05D LCD Display Panel

NL13676AC25-05D Product Description:

We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.

NL13676AC25-05D Contact us:

All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.

NL13676AC25-05D Payment Methods :

We accept T/T, West Union, PayPal , Escrow payment .

NL13676AC25-05D About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

NL13676AC25-05D Refound or Replacement:

We accept return back itmes if the goods still remain in their original condition on the warranty time .

NL13676AC25-05D FAQ:

Q: Can I pay my order of NL13676AC25-05D via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of NL13676AC25-05D ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of NL13676AC25-05D ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

NL13676AC25-05D Shippment & Packing

Industry 15.6 inch NL13676AC25-05D LCD Display Panel 0
