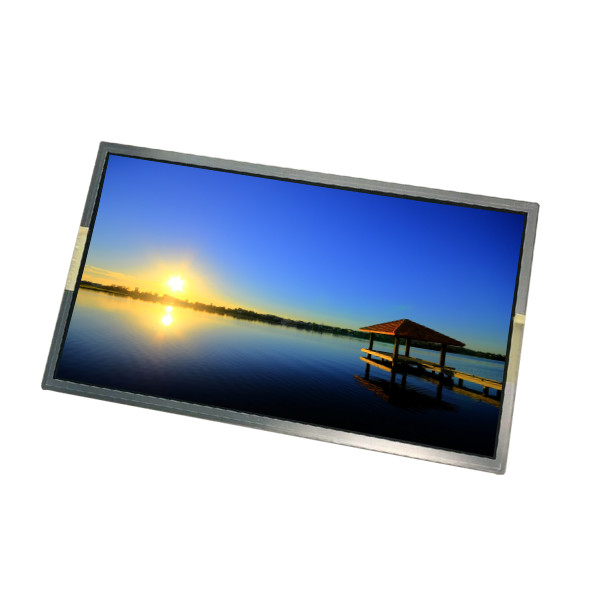

12.1inch 1280*800 NL12880BC20-25F LCD Display Panel

Brand Name:	NEC
Model Number:	NL12880BC20-25F
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

NL12880BC20-25F

Panel Size:

12.1"

Resolution:

1280(RGB)×800, WXGA 124PPI

Active Area:

261.12(W)×163.2(H) Mm

Luminance:

1600 Cd/m² (Typ.)

Pixel Layout:

RGB Vertical Stripe

Used For:

Industrial Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

12.1inch 1280*800 NL12880BC20-25F LCD Display Panel

NL12880BC20-25F Product details :

NLT LCD Screen NL12880BC20-25F
Manufacturer	NLT
Model Name	NL12880BC20-25F
Screen Size	12.1inch
Panel Type	a-Si TFT-LCD, LCM
Number of pixels	1280(RGB)×800, WXGA 124PPI
Pixel layout	RGB Vertical Stripe
Active Area	261.12(W)×163.2(H) mm
Bezel Opening	266.1(W)×168.2(H) mm
Outline (mm)	277.7(H)×180.6(V) ×9.2(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	1600 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
Response	15 (Typ.)(Tr+Td)
Best View on	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.2M 50% NTSC
Backlight	WLED [3 strings] , 60K hours , W/O Driver
Mass	470g (Typ.)
Used for	Industrial Outdoor High Brightness
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
12.1inch 1280*800 NL12880BC20-25F LCD Display Panel

NL12880BC20-25F Product Description:

We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.

NL12880BC20-25F Contact us:

All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.

NL12880BC20-25F Payment Methods :

We accept T/T, West Union, PayPal , Escrow payment .

NL12880BC20-25F About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

NL12880BC20-25F Refound or Replacement:

We accept return back itmes if the goods still remain in their original condition on the warranty time .

NL12880BC20-25F FAQ:

Q: Can you give me a discount if I need a large quantity of NL12880BC20-25F ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of NL12880BC20-25F via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods NL12880BC20-25F ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Do you accept sample orders of NL12880BC20-25F ?

A: Of course!sample order is welcome !

NL12880BC20-25F Shippment & Packing
