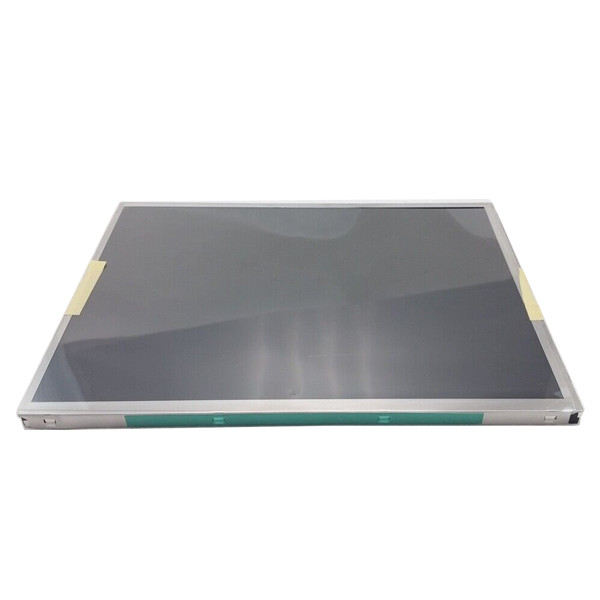

NL12880BC20-05KD LCD Display Touchscreen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880BC20-05KD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12880BC20-05KD | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Luminance: | 440 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Industrial | ||
Product Description
NL12880BC20-05KD LCD Display Touchscreen
NL12880BC20-05KD Product details :
| NEC LCD Screen NL12880BC20-05KD | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL12880BC20-05KD |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.1(W)×166.2(H) mm |
| Outline (mm) | 277.7×180.6 (H×V×D) |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 440 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| View Direction | Symmetry |
| Work Mode | UA-SFT, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 4 strings WLED , 70K hours , Optional |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, Optical Bonding |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| NL12880BC20-05KD LCD Display Touchscreen | |
NL12880BC20-05KD Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12880BC20-05KD Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12880BC20-05KD Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12880BC20-05KD About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880BC20-05KD Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12880BC20-05KD FAQ:
Q: Can I pay my order of NL12880BC20-05KD via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL12880BC20-05KD ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NL12880BC20-05KD ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
