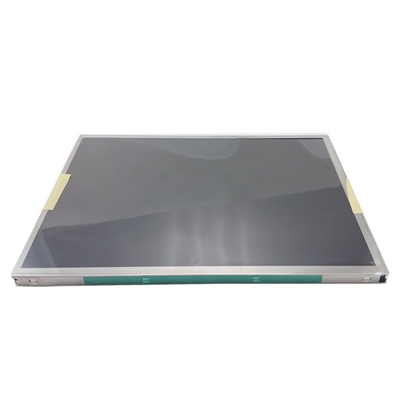

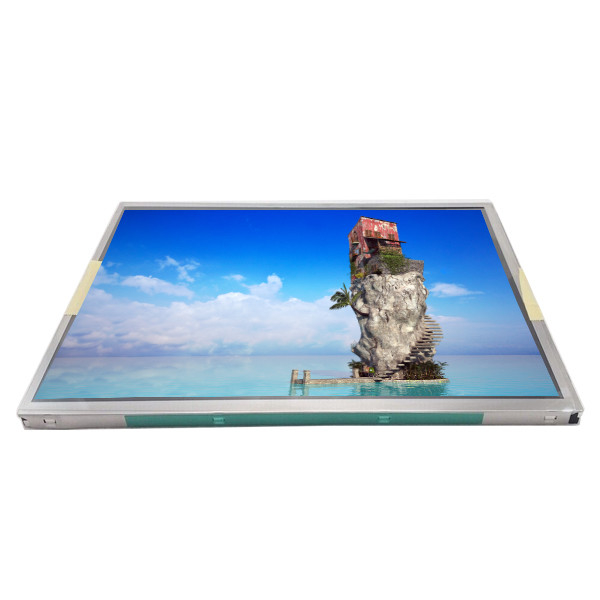

12.1 inch Touch NL12880BC20-05BD LCD Display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880BC20-05BD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12880BC20-05BD | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Industrial | ||
Product Description
12.1 inch Touch NL12880BC20-05BD LCD Display screen
NL12880BC20-05BD Product details :
| NEC LCD Screen NL12880BC20-05BD | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL12880BC20-05BD |
| Screen Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1280(RGB)×800, WXGA 124PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.1(W)×166.2(H) mm |
| Outline (mm) | 277.7(W)×180.6(H)×11.7(D) mm |
| Treatment | Anti Fingerprint + Antiglare, Hard coating (2H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Tf) |
| Best View on | Symmetry |
| Work Mode | UA-SFT, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | WLED [4 strings] , 70K hours , Optional |
| Mass | 620/680g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, Air Bonding |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 12.1 inch Touch NL12880BC20-05BD LCD Display screen | |
NL12880BC20-05BD Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12880BC20-05BD Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12880BC20-05BD Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12880BC20-05BD About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880BC20-05BD Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12880BC20-05BD FAQ:
Q: How long will I receive my goods NL12880BC20-05BD ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NL12880BC20-05BD ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NL12880BC20-05BD via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of NL12880BC20-05BD to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
NL12880BC20-05BD Shippment & Packing
