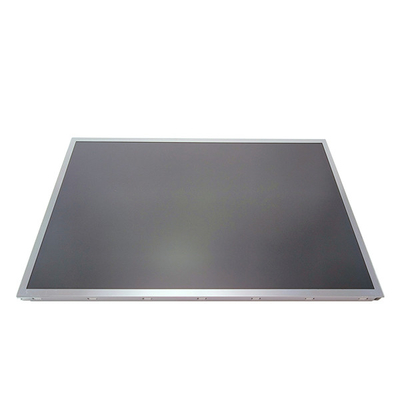

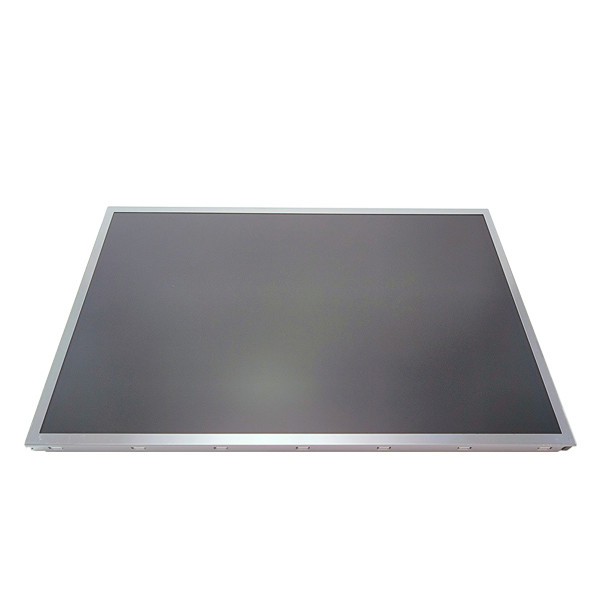

NL12880BC20-05BA LCD Industrial Display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880BC20-05BA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12880BC20-05BA | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Industrial | ||
Product Description
NL12880BC20-05BA LCD Industrial Display screen
NL12880BC20-05BA Product details :
| NEC LCD Screen NL12880BC20-05BA | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL12880BC20-05BA |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.1(W)×166.2(H) mm |
| Outline (mm) | 277.7(W)×180.6(H) ×11.2(D) mm |
| Treatment | Clear, Hard coating (6H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) |
| Good View at | Symmetry |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 4 strings WLED , 70K hours , Optional |
| Mass | 610g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, Air Bonding |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| NL12880BC20-05BA LCD Industrial Display screen | |
NL12880BC20-05BA Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12880BC20-05BA Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12880BC20-05BA Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12880BC20-05BA About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880BC20-05BA Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12880BC20-05BA FAQ:
Q: If I place order now,when will you ship the goods of NL12880BC20-05BA ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NL12880BC20-05BA via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of NL12880BC20-05BA ?
A: The order will be shipped within 2-3 working days after received your payment.
