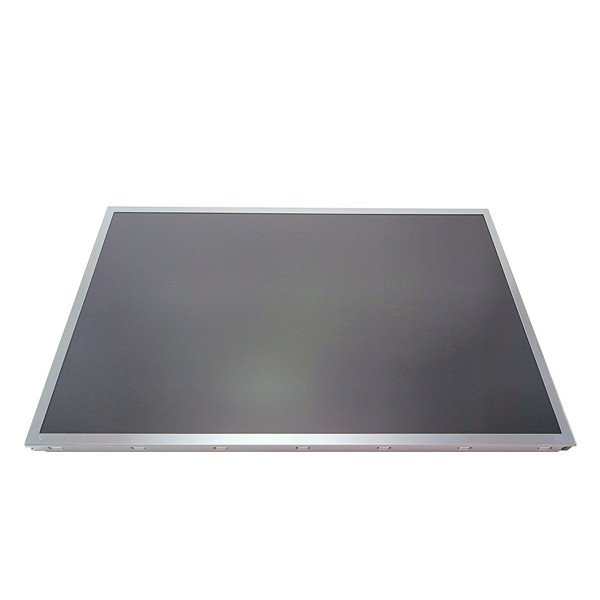

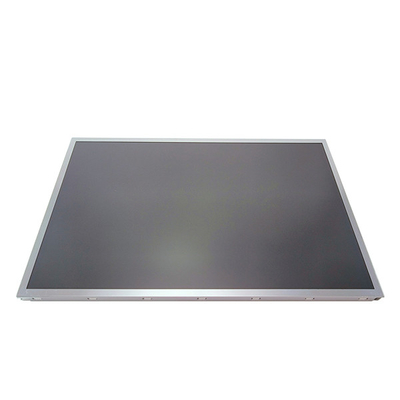

12.1 inch 124PPI NL12880BC20-02D LCD Industrial Display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880BC20-02D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12880BC20-02D | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Luminance: | 180 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Industrial | ||
Product Description
12.1 inch 124PPI NL12880BC20-02D LCD Industrial Display screen
NL12880BC20-02D Product details :
| NEC LCD Screen NL12880BC20-02D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL12880BC20-02D |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1280(RGB)×800, WXGA 124PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.1(W)×166.2(H) mm |
| Outline (mm) | 276.8 × 178.5 × 7.8 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 180 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| View Direction | Symmetry |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 1 pcs CCFL , No Driver |
| Mass | 350/370g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 12.1 inch 124PPI NL12880BC20-02D LCD Industrial Display screen | |
NL12880BC20-02D Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12880BC20-02D Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12880BC20-02D Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12880BC20-02D About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880BC20-02D Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12880BC20-02D FAQ:
Q: If I place order now,when will you ship the goods of NL12880BC20-02D ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods NL12880BC20-02D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of NL12880BC20-02D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
