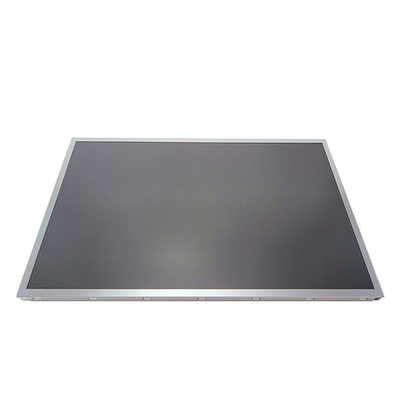

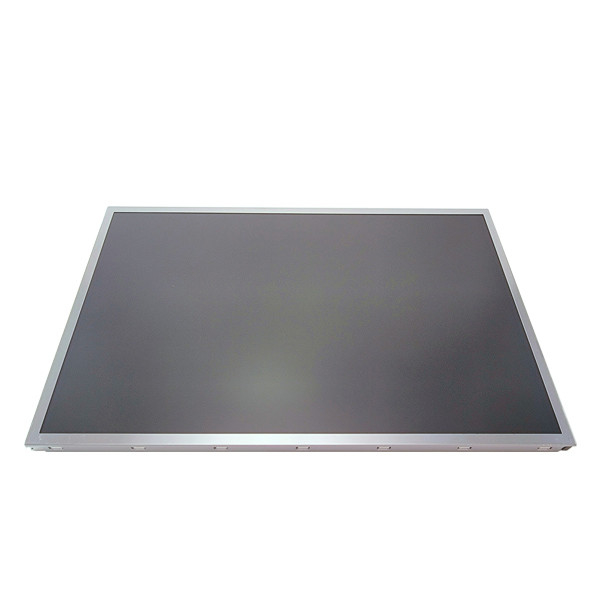

30 pins NL12880BC16-02F LCD Industrial Display panel
Product Details:
Place of Origin: | China |
Brand Name: | NEC |
Model Number: | NL12880BC16-02F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Panel Model: | NL12880BC16-02F | Panel Size: | 10.1" |
---|---|---|---|
Resolution: | 1280(RGB)×800, WXGA 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
Luminance: | 1000 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
Used For: | Industrial Outdoor High Brightness |
Product Description
30 pins NL12880BC16-02F LCD Industrial Display panel
NL12880BC16-02F Product details :
NLT LCD Screen NL12880BC16-02F | |
---|---|
Manufacturer | NLT |
Model Name | NL12880BC16-02F |
Screen Size | 10.1 inch |
Panel Type | a-Si TFT-LCD, LCM |
Number of pixels | 1280(RGB)×800, WXGA 149PPI |
Pixel layout | RGB Vertical Stripe |
Active Area | 216.96(W)×135.6(H) mm |
Bezel Opening | 220.0(W)×137.1(H) mm |
Outline (mm) | 235.4(W)×153.8(H) mm |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 1000 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
Response | 13/12 (Typ.)(Tr/Td) |
Best View on | Symmetry |
Work Mode | UA-SFT, Normally Black, Transmissive |
Color Depth | 262K/16.7M 50% NTSC |
Backlight | WLED [4 strings] , 70K hours , W/O Driver |
Mass | 460/510g (Typ./Max.) |
Used for | Industrial Outdoor High Brightness |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 7.0G (68.6 m/s²) |
30 pins NL12880BC16-02F LCD Industrial Display panel |
NL12880BC16-02F Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12880BC16-02F Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12880BC16-02F Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12880BC16-02F About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880BC16-02F Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12880BC16-02F FAQ:
Q: How can I trace my order of NL12880BC16-02F?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of NL12880BC16-02F ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NL12880BC16-02F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods NL12880BC16-02F ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
NL12880BC16-02F Shippment & Packing
