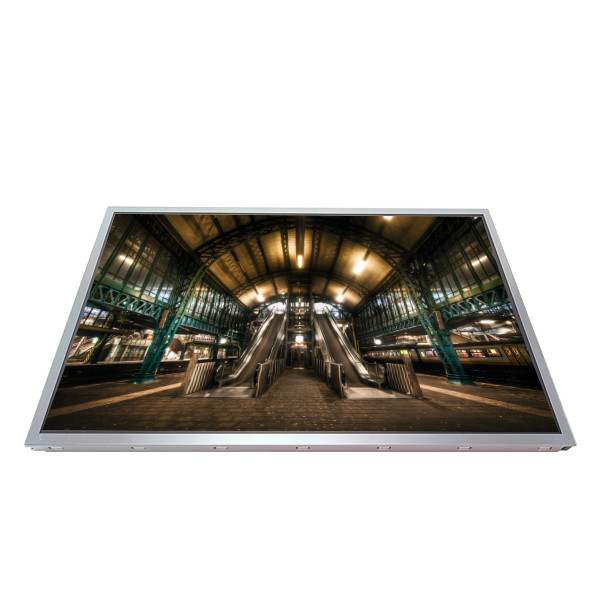

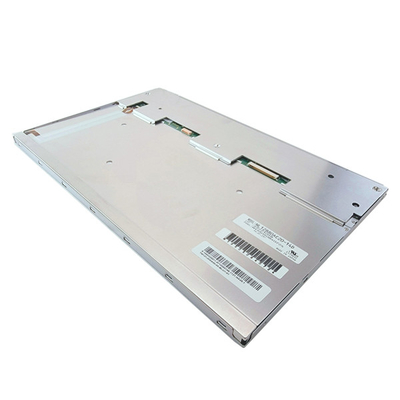

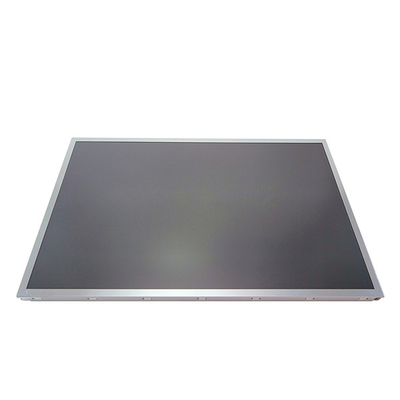

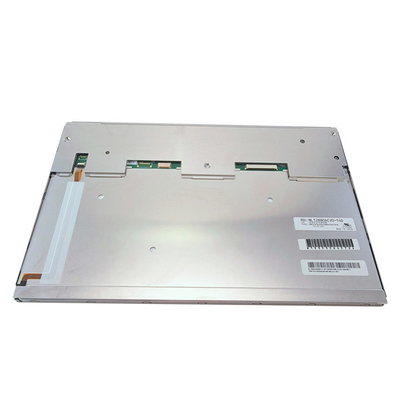

12.1 inch 20 pins Connector NL12880AC20-14D LCD Display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880AC20-14D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12880AC20-14D | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 124PPI | Active Area: | 261.12(W)×163.2(H) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Bar |
| Used For: | Industrial | ||
Product Description
12.1 inch 20 pins Connector NL12880AC20-14D LCD Display panel
NL12880AC20-14D Product details :
| NLT LCD Screen NL12880AC20-14D | |
|---|---|
| Manufacturer | NLT |
| Model Name | NL12880AC20-14D |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1280(RGB)×800, WXGA 124PPI |
| Pixel layout | RGB vertical bar |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 266.1(W)×168.2(H) mm |
| Outline (mm) | 277.7(W)×180.6(H)×9.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/12 (Typ.)(Tr/Td) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 470/500g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 12.1 inch 20 pins Connector NL12880AC20-14D LCD Display panel | |
NL12880AC20-14D Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12880AC20-14D Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12880AC20-14D Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12880AC20-14D About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880AC20-14D Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12880AC20-14D FAQ:
Q: If I place order now,when will you ship the goods of NL12880AC20-14D ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of NL12880AC20-14D ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of NL12880AC20-14D ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
