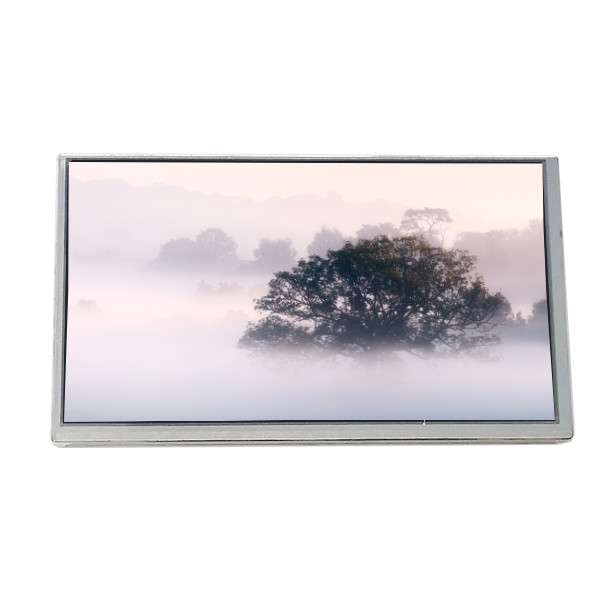

Industrial 10.1 inch LCD Display panel NL12880AC16-01D
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880AC16-01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12880AC16-01D | Panel Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Bar |
| Used For: | Industrial | ||
Product Description
Industrial 10.1 inch LCD Display panel NL12880AC16-01D
NL12880AC16-01D Product details :
| NLT LCD Screen NL12880AC16-01D | |
|---|---|
| Manufacturer | NLT |
| Model Name | NL12880AC16-01D |
| Screen Size | 10.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1280(RGB)×800, WXGA 149PPI |
| Pixel layout | RGB vertical bar |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 220.0(W)×138.6(H) mm |
| Outline (mm) | 235.4(H)×148.8(V)×10.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 13/12 (Typ.)(Tr/Td) |
| View Direction | Symmetry |
| Work Mode | UA-SFT, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | WLED , 70K hours , With LED Driver |
| Mass | 335/385g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| Industrial 10.1 inch LCD Display panel NL12880AC16-01D | |
NL12880AC16-01D Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12880AC16-01D Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12880AC16-01D Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12880AC16-01D About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12880AC16-01D Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12880AC16-01D FAQ:
Q: How long will I receive my goods NL12880AC16-01D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of NL12880AC16-01D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NL12880AC16-01D ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of NL12880AC16-01D ?
A: Of course!sample order is welcome !
NL12880AC16-01D Shippment & Packing
