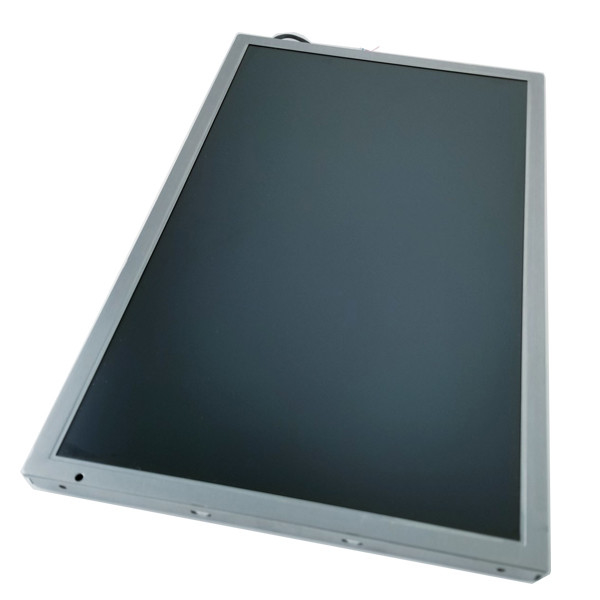

LCD Display panel NL12876BC26-28 for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12876BC26-28 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12876BC26-28 | Panel Size: | 15.3" |
|---|---|---|---|
| Resolution: | 1280(RGB)×768, WXGA 97PPI | Active Area: | 334.08(W)×200.45(H) Mm |
| Luminance: | 330cd/m² (Typ.) | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Industrial | ||
Product Description
LCD Display panel NL12876BC26-28 for Industrial
NL12876BC26-28 Product details :
| NEC LCD Screen NL12876BC26-28 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL12876BC26-28 |
| Screen Size | 15.3inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1280(RGB)×768, WXGA 97PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 334.08(W)×200.45(H) mm |
| Bezel Opening | 336.2(W)×202.8(H) mm |
| Outline (mm) | 358(W)×226(H) ×16.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 330 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) |
| View Direction | Symmetry |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 4 pcs CCFL , 50K hours , Without Driver |
| Mass | 1.27/1.40Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| LCD Display panel NL12876BC26-28 for Industrial | |
NL12876BC26-28 Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12876BC26-28 Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12876BC26-28 Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12876BC26-28 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12876BC26-28 Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12876BC26-28 FAQ:
Q: How can I trace my order of NL12876BC26-28?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of NL12876BC26-28?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of NL12876BC26-28?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of NL12876BC26-28?
A: Of course!sample order is welcome !
Q: Can I pay my order of NL12876BC26-28 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
NL12876BC26-28 Shippment & Packing
