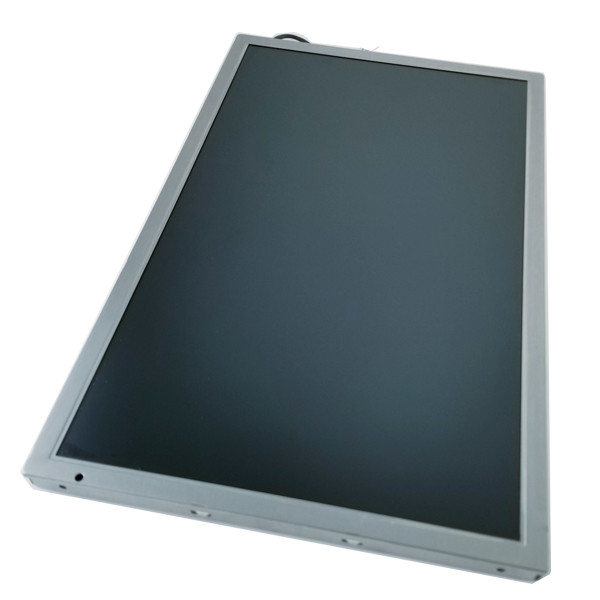

1280*768 LCD Display panel NL12876BC26-25B

Brand Name:	NEC
Model Number:	NL12876BC26-25B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

NL12876BC26-25B

Panel Size:

15.3"

Resolution:

1280(RGB)×768, WXGA 97PPI

Active Area:

334.08(W)×200.45(H) Mm

Luminance:

470 Cd/m² (Typ.)

Pixel Layout:

RGB Vertical Stripe

Used For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

1280*768 LCD Display panel NL12876BC26-25B

NL12876BC26-25B Product details :

NEC LCD Screen NL12876BC26-25B
Manufacturer	NEC
Model Name	NL12876BC26-25B
Screen Size	15.3Inch
Panel Type	a-Si TFT-LCD, LCM
Number of pixels	1280(RGB)×768, WXGA 97PPI
Pixel layout	RGB Vertical Stripe
Active Area	334.08(W)×200.45(H) mm
Bezel Opening	336.2(W)×202.8(H) mm
Outline (mm)	358(W)×226(H) ×16.8(D) mm
Treatment	Clear, Hard coating (3H)
Luminance	470 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing angle	85/85/85/85 (Typ.)(CR≥10)
Response	14/11 (Typ.)(Tr/Td)
Best View on	Symmetry
Work Mode	SA-SFT, Normally Black, Transmissive
Color Depth	16.7M 40% NTSC
Backlight	4 pcs CCFL , Without Driver
Mass	1.27/1.40Kgs (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
1280*768 LCD Display panel NL12876BC26-25B

NL12876BC26-25B Product Description:

We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.

NL12876BC26-25B Contact us:

All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.

NL12876BC26-25B Payment Methods :

We accept T/T, West Union, PayPal , Escrow payment .

NL12876BC26-25B About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

NL12876BC26-25B Refound or Replacement:

We accept return back itmes if the goods still remain in their original condition on the warranty time .

NL12876BC26-25B FAQ:

Q: How can I trace my order of NL12876BC26-25B ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of NL12876BC26-25B ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of NL12876BC26-25B ?

A: Of course!sample order is welcome !

Q: Can I pay my order of NL12876BC26-25B via credit card ?

A: Yes!you can use your credit card through your Paypal account.

NL12876BC26-25B Shippment & Packing
