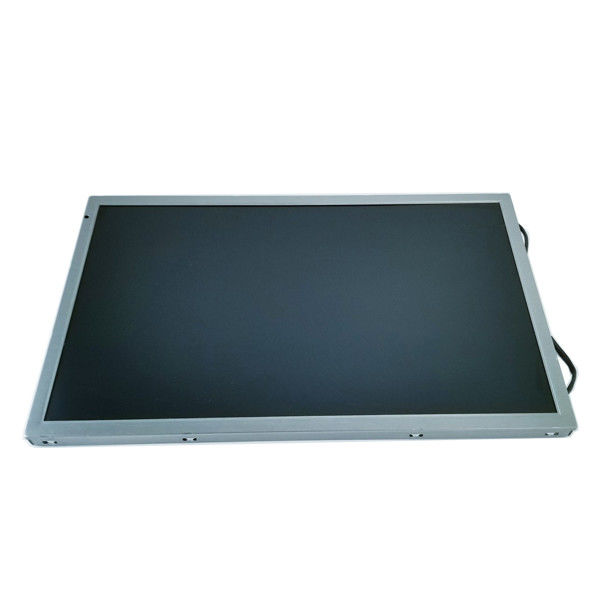

15.3 inch 97PPI NL12876BC26-25A TFT LCD Display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12876BC26-25A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12876BC26-25A | Panel Size: | 15.3" |
|---|---|---|---|
| Resolution: | 1280(RGB)×768, WXGA 97PPI | Active Area: | 334.08(W)×200.45(H) Mm |
| Color Depth: | 16.7M 40% NTSC | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Industrial | ||
Product Description
15.3 inch 97PPI NL12876BC26-25A TFT LCD Display panel
NL12876BC26-25A Product details :
| NEC LCD Screen NL12876BC26-25A | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL12876BC26-25A |
| Screen Size | 15.3inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×768, WXGA 97PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 334.08(W)×200.45(H) mm |
| Bezel Opening | 336.2(W)×202.8(H) mm |
| Outline (mm) | 358(W)×226(H) |
| Treatment | - |
| Luminance | 470 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| View Direction | - |
| Work Mode | SA-SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 40% NTSC |
| Backlight | 4 pcs CCFL , No Driver |
| Mass | 1.27/1.40Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
| 15.3 inch 97PPI NL12876BC26-25A TFT LCD Display panel | |
NL12876BC26-25A Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12876BC26-25A Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12876BC26-25A Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12876BC26-25A About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12876BC26-25A Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12876BC26-25A FAQ:
Q: If I place order now,when will you ship the goods of NL12876BC26-25A ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NL12876BC26-25A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of NL12876BC26-25A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods NL12876BC26-25A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
NL12876BC26-25A Shippment & Packing
