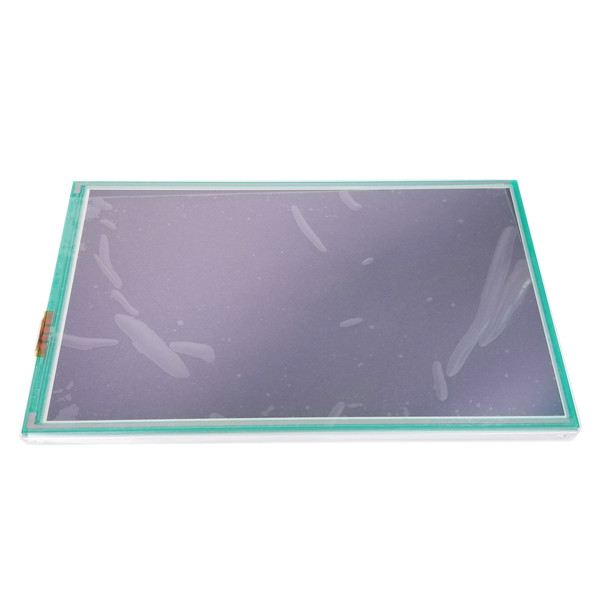

New Original NL12876BC26-22F LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12876BC26-22F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL12876BC26-22F | Panel Size: | 15.3" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA 97PPI | Active Area: | 334.08(W)×200.45(H) Mm |
| Color Depth: | 262K 56% NTSC | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Desktop Monitor | ||
Product Description
New Original NL12876BC26-22F LCD Display Screen
NL12876BC26-22F Product details :
| NEC LCD Screen NL12876BC26-22F | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL12876BC26-22F |
| Screen Size | 15.3inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024, SXGA 97PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 334.08(W)×200.45(H) mm |
| Bezel Opening | 337.6(W)×203.9(H) mm |
| Outline (mm) | 369(H)×226(V) mm |
| Treatment | Hard coating (3H), Antireflection |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing angle | 60/60/40/60 (Typ.)(CR≥10) |
| Response | 10/20 (Typ.)(Tr/Td) |
| Best View on | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 56% NTSC |
| Backlight | 2 pcs CCFL , Without Driver |
| Mass | 850±85g |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| New Original NL12876BC26-22F LCD Display Screen | |
NL12876BC26-22F Product Description:
We provide more than 10000 kinds of electronic components and electronical equipment , such as ,IC, transistor, resistor , touch screen, LCD/LED , IGBT etc ,Please contact us by fax, phone or email, so we can quote you the best price as per your requirements.
NL12876BC26-22F Contact us:
All Emails or trade manager will be answeredwithin 30 minutes. If out of working time, we may can't be to reply immediately, but we will answer once we back to work.
NL12876BC26-22F Payment Methods :
We accept T/T, West Union, PayPal , Escrow payment .
NL12876BC26-22F About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL12876BC26-22F Refound or Replacement:
We accept return back itmes if the goods still remain in their original condition on the warranty time .
NL12876BC26-22F FAQ:
Q: Can You declare my order of NL12876BC26-22F to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NL12876BC26-22F ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of NL12876BC26-22F ?
A: Of course!sample order is welcome !
Q: Can I pay my order of NL12876BC26-22F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
NL12876BC26-22F Shippment & Packing
