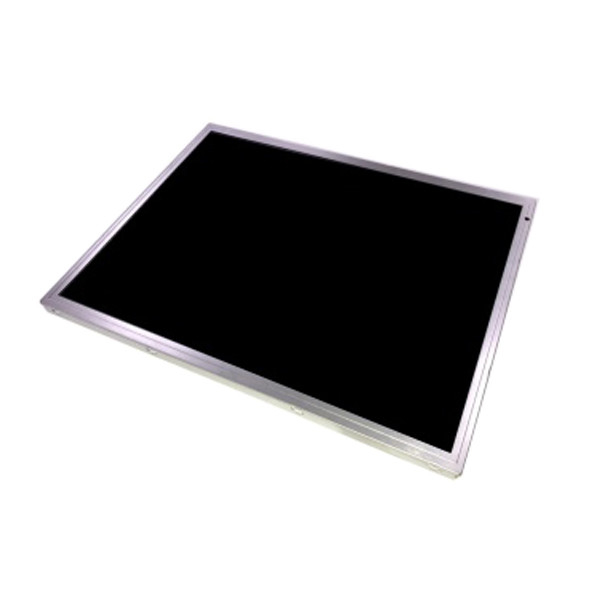

20 pins NL10276KC30-43DD Touch LCD display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276KC30-43DD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276KC30-43DD | Diagonal Size: | 15.0'' |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Outline (mm): | 326.5(W)×253.5(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Pixel Layout: | RGB Vertical Stripe | Used For: | Industrial |
Product Description
20 pins NL10276KC30-43DD Touch LCD display Panel
NL10276KC30-43DD LCD Panel Product details :
| NLT LCD Screen NL10276KC30-43DD | |
|---|---|
| Manufacturer | NLT |
| Model Name | NL10276KC30-43DD |
| Screen Size | 15.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1024(RGB)×768, XGA 85PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | - |
| Outline (mm) | 326.5(W)×253.5(H) mm |
| Treatment | Anti Fingerprint + Antiglare, Hard coating (2H) |
| Luminance | 450 (Typ.)(cd/m²) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/15 (Typ.)(Tr/Td) ms |
| View Direction | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 6 strings WLED , 70K hours , No Driver |
| Mass | 1.49/1.64Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, Air Bonding, USB |
| Signal Type | LVDS (1 ch, 8-bit) 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 20 pins NL10276KC30-43DD Touch LCD display Panel | |
NL10276KC30-43DD LCD Screen About Products
Product Information: Before making a purchase, we urge you to carefully read the information provided in the article to ensure that you are selecting the correct product for your needs. If you are uncertain about whether this product is suitable for you, please do not hesitate to contact us at any time. Our team of professional engineers is available to assist you. In order to provide you with the best assistance, we may request photos and additional product information from you. Your timely response is greatly appreciated as it enables us to serve you better.
Production Variations: Please be aware that some products may have different production times, originate from various factories, and may be intended for different sales regions. As a result, there may be slight variations in product codes and details. However, we assure you that this is a normal occurrence and does not affect the functionality or quality of the product. Regardless of any minor differences, we guarantee that the product you receive will meet the required specifications and standards.
NL10276KC30-43DD LCD Screen NOTICE:
Import Duties and Taxes: Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs Declaration: In order to facilitate the customs process, we will mark the item as a "gift" on the custom sticker.
Shipping Service: We strive to provide you with the most reliable and affordable shipping service available. However, please be aware that international delivery times may vary depending on the courier company and local customs and duties regulations. As a result, shipping times may be longer than usual. We appreciate your patience and understanding during this time.
NL10276KC30-43DD LCD Panel Shipping and Package :
NL10276KC30-43DD LCD Screen After Sales:
Installation Caution: Prior to confirming that the screen is not functioning properly, we strongly advise against using adhesive to install our screen onto your equipment. If the screen becomes affixed with adhesive, we regret to inform you that we cannot accept returns or process refunds.
Troubleshooting Procedures:
a. Broken Screen: If you encounter a broken screen upon receipt, please document the unpacking process by making an unpacking video. Following this, kindly contact us and forward the video for our review.
b. Non-Functioning Screen: In the event of a screen that fails to operate as expected, we request that you create a testing video demonstrating the issue. Subsequently, please reach out to us and provide the video for further assistance.
Customer Support: Should you encounter any problems with the screen, we encourage you to contact us immediately. Our dedicated support team is committed to addressing your concerns promptly and resolving any issues you may encounter.
NL10276KC30-43DD LCD Panel FAQ :
Q: How long will I receive my goods NL10276KC30-43DD ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of NL10276KC30-43DD to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NL10276KC30-43DD ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NL10276KC30-43DD via credit card ?
A: Yes!you can use your credit card through your Paypal account.
