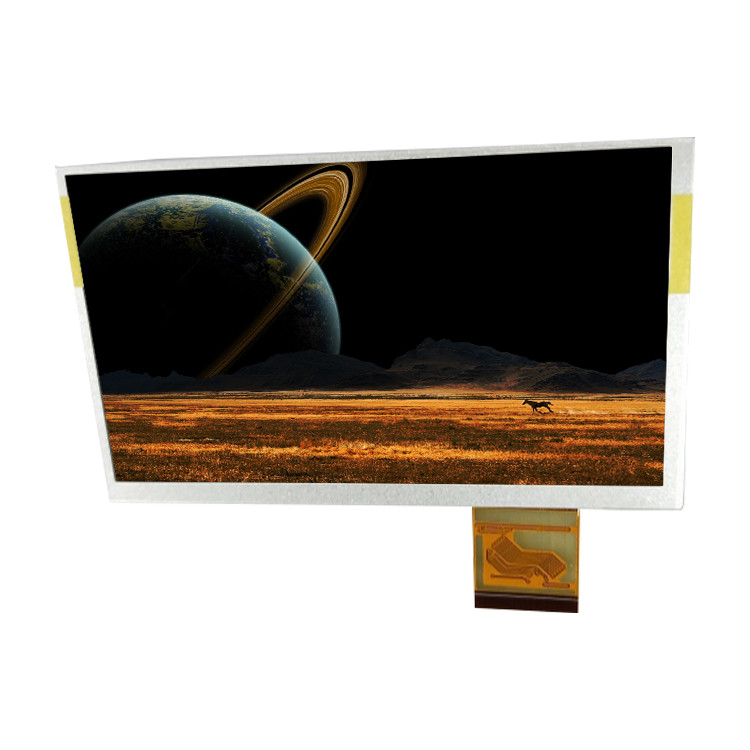

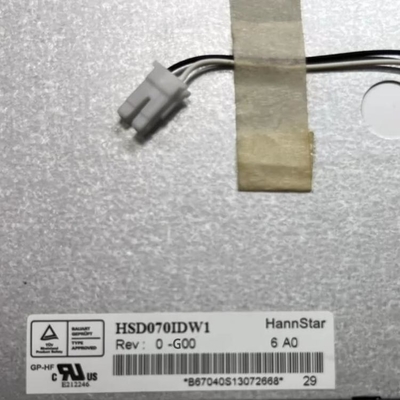

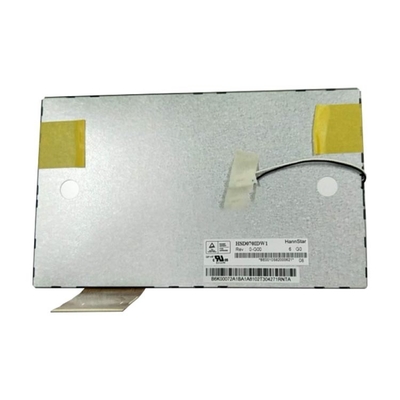

HSD070IDW1-G00 LCD screen LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070IDW1-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070IDW1-G00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 134PPI | Active Area: | 153.6(W)×86.64(H) Mm |
| Outline (mm): | 164.9×100×6 (H×V×D) | Bezel Opening: | 156.0(W)×90.1(H) Mm |
| Contrast Ratio: | 500:1 (Typ.) (TM) | Display Mode: | TN, Normally White, Transmissive |
| Used For: | Automotive Display | Signal Type: | TTL (1 Ch, 6/8-bit) , FPC 60 Pins |
Product Description
HSD070IDW1-G00 LCD screen LCD display TFT Module
HSD070IDW1-G00 LCD Panel Product details :
| HannStar LCD Screen HSD070IDW1-G00 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD070IDW1-G00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×86.64(H) mm |
| Bezel Opening | 156.0(W)×90.1(H) mm |
| Outline(mm) | 164.9 × 100× 6 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 50%NTSC |
| Backlight | 3S11PWLED, 10K hours, No Driver |
| Mass | 153g (Typ.) |
| Used for | Automotive Display |
| Touchscreen | Without |
| Signal Type | TTL (1 ch, 6/8-bit), 60 pinsFPC |
| Voltage Supply | 3.0/10/15/-7V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| HSD070IDW1-G00 LCD screen LCD display TFT Module | |
