1024*768 NL10276BC28-21A 14.1 inch TFT LCD Screen panel
Product Details:
Place of Origin: | China |
Brand Name: | NEC |
Model Number: | NL10276BC28-21A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | NL10276BC28-21A | Diagonal Size: | 14.1" |
---|---|---|---|
Resolution: | 1024(RGB)×768, XGA 91PPI | Active Area: | 285.696(W)×214.272(H) Mm |
Color Depth: | 262K 40% NTSC | Pixel Layout: | RGB Vertical Stripe |
Used For: | Laptop | Luminance: | 150 Cd/m² (Typ.) |
Product Description
1024*768 NL10276BC28-21A 14.1 inch TFT LCD Screen panel
NL10276BC28-21A Product details :
NEC LCD Screen NL10276BC28-21A | |
---|---|
Manufacturer | NEC |
Model Name | NL10276BC28-21A |
Screen Size | 14.1inch |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 91PPI |
Pixel layout | RGB Vertical Stripe |
Active Area | 285.696(W)×214.272(H) mm |
Bezel Opening | 288.8(W)×218.3(H) mm |
Outline (mm) | 298(W)×225.5(H)×5.7(D) mm |
Treatment | Hard coating (3H) |
Luminance | 150 cd/m² (Typ.) |
Contrast Ratio | 150:1 (Typ.) (TM) |
Viewing angle | 50/50/20/40 (Typ.)(CR≥10) |
Response | 15/50 (Typ.)(Tr/Td) |
View Direction | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 40% NTSC |
Backlight | CCFL [1 pcs] , W/O Driver |
Mass | - |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Environment | Oerating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |
1024*768 NL10276BC28-21A 14.1 inch TFT LCD Screen panel |
NL10276BC28-21A NOTE:

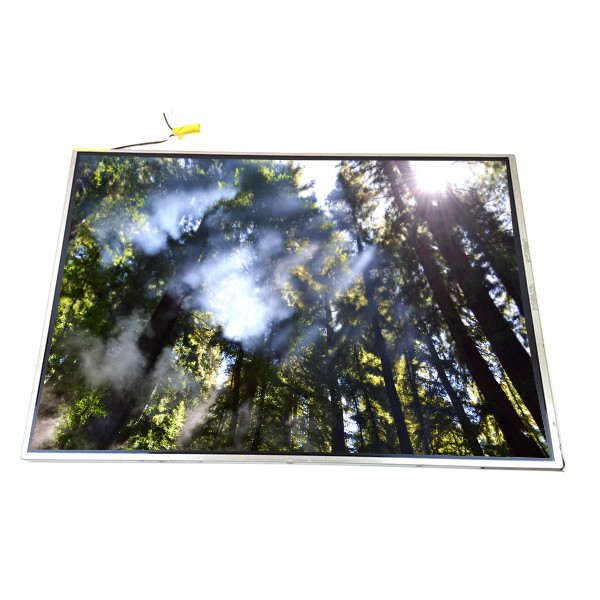

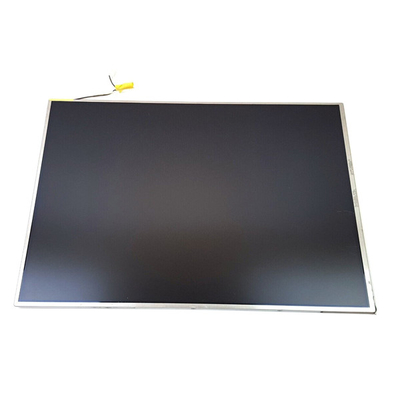

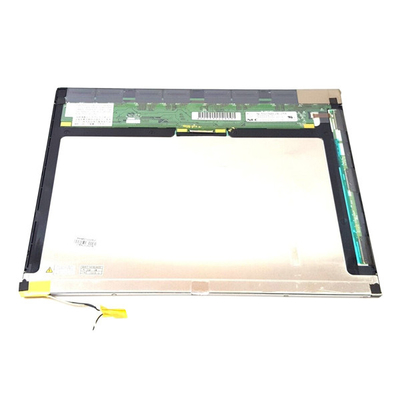

The display is just same as the photos. The warranty is 12 months.
Working hours: 9:00a.m.~18:30p.m., Monday to Saturday (China Time), except official holidays.
If you need more than 10 pcs, please contact us for a good discount.
1. Each lcd will be strictly tested with professional testing board to make sure it will work for your device.
2. If the item is defective, pls notify us within 3 days after receiving. We promise to offer you with the most satisfiying after-sale service.
NL10276BC28-21A Payment:
1)All major credit cards are acceptable through secure payment processor ESCROW.
2) If you can't immediately checkout after auction close, please wait for a few minutes and retry.
3) If you have any problem on payment, please contacr us.
NL10276BC28-21A Shipping and Package :
NL10276BC28-21A Shipping:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once yourpayment is completed.(Under special circumstances, we will promptly notify you of the delivery time)
We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into yourcountry. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
NL10276BC28-21A Contact us:
We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.
Thank you for your support, I hope everyone has a pleasant business trip in our store, and welcome you to come next!
NL10276BC28-21A FAQ:
Q: Do you accept sample orders of NL10276BC28-21A?
A: Of course!sample order is welcome !
Q: Can You declare my order of NL10276BC28-21A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of NL10276BC28-21A?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of NL10276BC28-21A?
A: We accept T/T , Paypal , western union .
