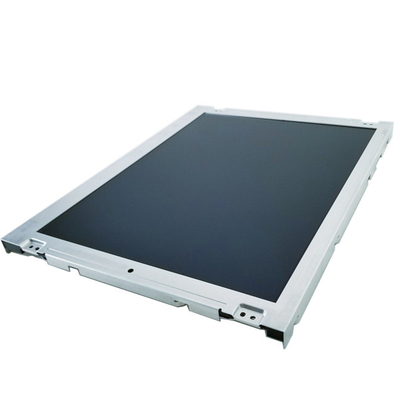

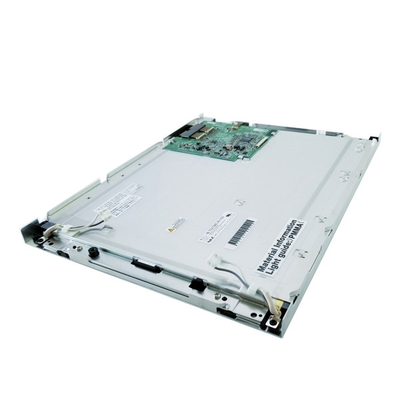

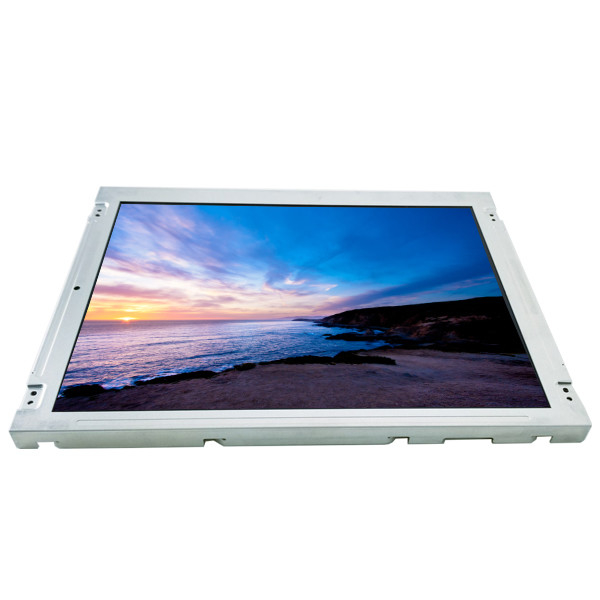

NL10276BC28-05D LCD Display Screen For Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC28-05D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL10276BC28-05D | Diagonal Size: | 14.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 91PPI | Active Area: | 285.696(W)×214.272(H) Mm |
| Color Depth: | 262K 40% NTSC | Pixel Layout: | RGB Vertical Stripe |
| Used For: | Laptop | Bezel Opening: | 290.4(W)×219.0(H) Mm |
Product Description
NL10276BC28-05D LCD Display Screen For Laptop
NL10276BC28-05D Product details :
| NEC LCD Screen NL10276BC28-05D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC28-05D |
| Screen Size | 14.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 91PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 285.696(W)×214.272(H) mm |
| Bezel Opening | 290.4(W)×219.0(H) mm |
| Outline (mm) | 330(W)×255(H) ×18.5(D) mm |
| Treatment | - |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing angle | 50/50/20/35 (Typ.)(CR≥10) |
| Response | 11/40 (Typ.)(Tr/Td) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 40% NTSC |
| Backlight | 2 pcs CCFL , Without Driver |
| Mass | 1.15/1.30Kgs (Typ./Max.) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | - |
| Signal Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| NL10276BC28-05D LCD Display Screen For Laptop | |
NL10276BC28-05D NOTE:
The display is just same as the photos. The warranty is 12 months.
Working hours: 9:00a.m.~18:30p.m., Monday to Saturday (China Time), except official holidays.
If you need more than 10 pcs, please contact us for a good discount.
1. Each lcd will be strictly tested with professional testing board to make sure it will work for your device.
2. If the item is defective, pls notify us within 3 days after receiving. We promise to offer you with the most satisfiying after-sale service.
NL10276BC28-05D Payment:
1)All major credit cards are acceptable through secure payment processor ESCROW.
2) If you can't immediately checkout after auction close, please wait for a few minutes and retry.
3) If you have any problem on payment, please contacr us.
NL10276BC28-05D Shipping and Package :
NL10276BC28-05D Shipping:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once yourpayment is completed.(Under special circumstances, we will promptly notify you of the delivery time)
We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into yourcountry. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
NL10276BC28-05D Contact us:
We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.
Thank you for your support, I hope everyone has a pleasant business trip in our store, and welcome you to come next!
NL10276BC28-05D FAQ:
Q: If I place order now,when will you ship the goods of NL10276BC28-05D ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NL10276BC28-05D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of NL10276BC28-05D ?
A: The order will be shipped within 2-3 working days after received your payment.
