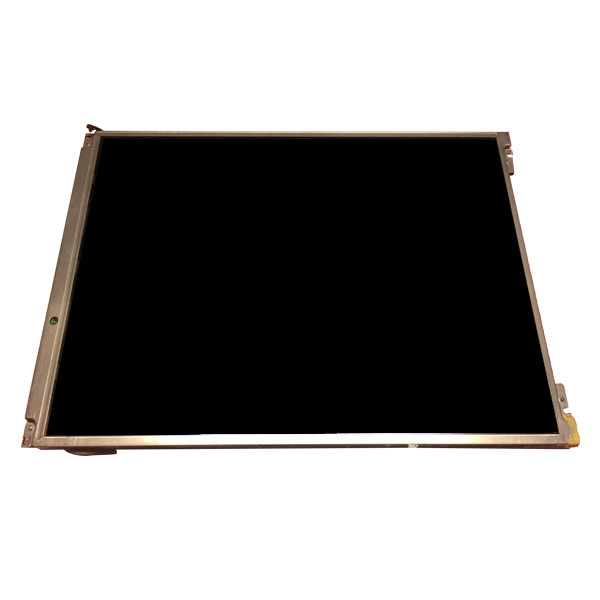

13.3 inch 20 pins NL10276BC26-02 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC26-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276BC26-02 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 96PPI | Active Area: | 270.336(W)×202.752(H) Mm |
| Outline (mm): | 289.5(H)×222.5(V) ×10.4(D) Mm | Bezel Opening: | 274.4(W)×206.8(H) Mm |
| Contrast: | 120 : 1 (Typ.) (TM) | Luminance: | 100cd/m² (Typ.) |
| Viewing Angle: | 45/45/25/35 (Typ.)(CR≥10) | ||
Product Description
13.3 inch 20 pins NL10276BC26-02 LCD Screen Display
NL10276BC26-02 LCD Panel Product details :
| NEC LCD Screen NL10276BC26-02 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC26-02 |
| Screen Size | 13.3inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 1024(RGB)×768, XGA 96PPI |
| Pixel layout | RGB vertical bar |
| Active Area | 270.336(W)×202.752(H) mm |
| Bezel Opening | 274.4(W)×206.8(H) mm |
| Outline (mm) | 289.5(H)×222.5(V) ×10.4(D) mm |
| Treatment | - |
| Luminance | 100 cd/m² (Typ.) |
| Contrast Ratio | 120 : 1 (Typ.) (TM) |
| Viewing angle | 45/45/25/35 (Typ.)(CR≥10) |
| Response | - |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 40% NTSC |
| Backlight | 1 pcs CCFL , No Driver |
| Mass | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 6-bit) , 20 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 13.3 inch 20 pins NL10276BC26-02 LCD Screen Display | |
NL10276BC26-02 LCD Screen Why choose us?
We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.
1. Bulk orders will be provided to you at an acceptable low price.
2. Wide range of parts, please visit our store to see more.
3. Fast Delivery-Most items will be shipped within 24 hours.
4. Provide extensive after-sales support through messages, emails, etc.
5. Friendly return policy.
NL10276BC26-02 LCD Screen Specifications :
Designed as a seamless replacement for your existing screen, the NL10276BC26-02 LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.
Before making your purchase, we highly recommend examining the provided picture to verify that the NL10276BC26-02 LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.
NL10276BC26-02 LCD Panel Shipping and Package :
NL10276BC26-02 LCD Screen Quality & Warranty:
In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.
We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.
Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.
NL10276BC26-02 LCD Panel FAQ :
Q: How can I trace my order of NL10276BC26-02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of NL10276BC26-02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of NL10276BC26-02 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of NL10276BC26-02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
