LCD Screen Display Panel

105PPI 20 pins NL10276BC24-21L LCD Screen Display

All Category

Floor Standing Digital Signage

105PPI 20 pins NL10276BC24-21L LCD Screen Display

Brand Name:	NEC
Model Number:	NL10276BC24-21L
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

NL10276BC24-21L

Diagonal Size:

12.1"

Resolution:

1024(RGB)×768, XGA 105PPI

Active Area:

245.76(W)×184.32(H) Mm

Physical Dimension:

260.5(W)*203(H) ×9.2(D) Mm

Viewable Area:

249.0(W)*187.5(H) Mm

Contrast:

900:1 (Typ.) (TM)

Luminance:

450 Cd/m² (Typ.)

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Supply Ability:

100000 Unit/Units per Month

Product Description

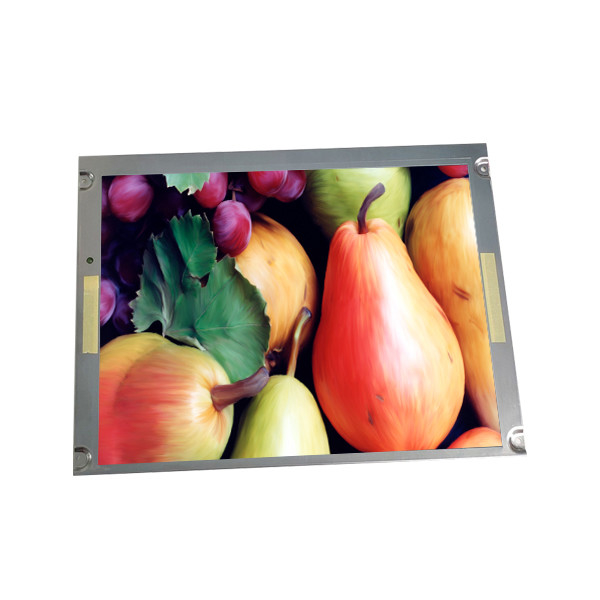

105PPI 20 pins NL10276BC24-21L LCD Screen Display

NL10276BC24-21L LCD Panel Product details :

NEC LCD Screen NL10276BC24-21L
Manufacturer	NEC
Model Name	NL10276BC24-21L
Screen Size	12.1 inch
Panel type	a-Si TFT-LCD, LCM
Number of pixels	1024(RGB)*768, XGA, 105PPI
Pixel layout	RGB vertical bar
Display area	245.76(W)*184.32(H) mm
Viewable area	249.0(W)*187.5(H) mm
physical dimension	260.5(W)*203(H) ×9.2(D) mm
Surface treatment	Clear, Hard coating (3H)
Panel brightness	450 cd/m² (Typ.)
Contrast	900:1 (Typ.) (TM)
Viewing angle	80/80/80/80 (Typ.)(CR≥10)
Operating mode	TN, normally white display, transmissive
Reaction time	3/15 (Typ.)(Tr/Td)
Display color	262K/16.7M, 40% NTSC
type of light source	4 strings WLED, 70K hours, optional
working frequency	60Hz
Panel weight	490/540g (Typ./Max.)
Signal interface	LVDS (1 ch, 6/8-bit), 20 pins, connector
Drive screen voltage	3.3V (Typ.)
working environment	Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
105PPI 20 pins NL10276BC24-21L LCD Screen Display

NL10276BC24-21L LCD Screen Why choose us?

We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.

1. Bulk orders will be provided to you at an acceptable low price.

2. Wide range of parts, please visit our store to see more.

3. Fast Delivery-Most items will be shipped within 24 hours.

4. Provide extensive after-sales support through messages, emails, etc.

5. Friendly return policy.

NL10276BC24-21L LCD Screen Specifications :

Designed as a seamless replacement for your existing screen, the NL10276BC24-21L LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.

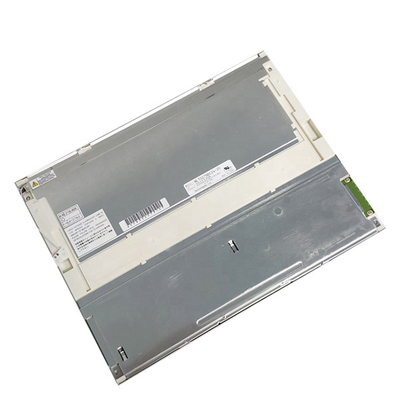

Before making your purchase, we highly recommend examining the provided picture to verify that the NL10276BC24-21L LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.

NL10276BC24-21L LCD Panel Shipping and Package :
105PPI 20 pins NL10276BC24-21L LCD Screen Display 0

NL10276BC24-21L LCD Screen Quality & Warranty:

In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.

We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.

Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.

NL10276BC24-21L LCD Panel FAQ :

Q: Can You declare my order of NL10276BC24-21L to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of NL10276BC24-21L via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of NL10276BC24-21L?

A: Of course!If you make a large order, we will give you a discount.
