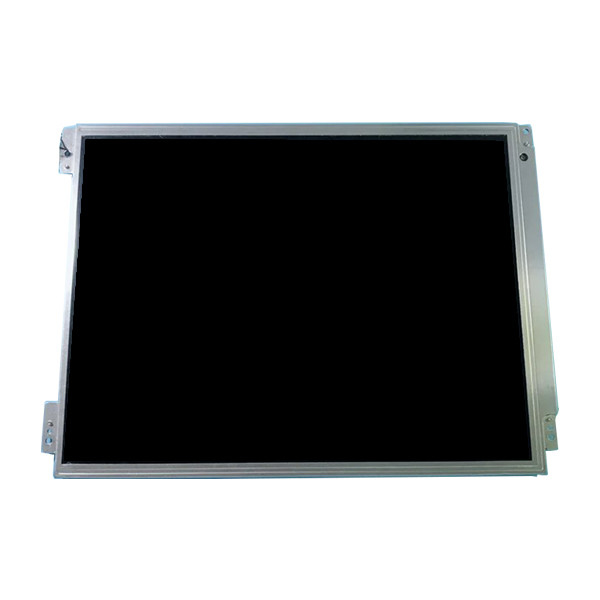

NL10276BC24-21KH LCD Screen Touch Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC24-21KH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276BC24-21KH | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Active Area: | 245.76(W)×184.32(H) Mm |
| Outline Dim.: | 260.5 × 203 × 11.6 (H×V×D) | Bezel Opening: | 249.0(W)×187.5(H) Mm |
| Used For: | Industrial Outdoor High Brightness | Luminance: | 750 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | ||
Product Description
NL10276BC24-21KH LCD Screen Touch Display
NL10276BC24-21KH LCD Panel Product details :
| NEC LCD Screen NL10276BC24-21KH | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC24-21KH |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline (mm) | 260.5 × 203 × 11.6 (H×V×D) |
| Treatment | Anti Fingerprint + Antiglare, Hard coating (2H) |
| Luminance | 750 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/15 (Typ.)(Tr/Td) ms |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 5 strings WLED , 70K hours , Optional |
| Mass | 730/825g (Typ./Max.) |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, Optical Bonding |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| NL10276BC24-21KH LCD Screen Touch Display | |
