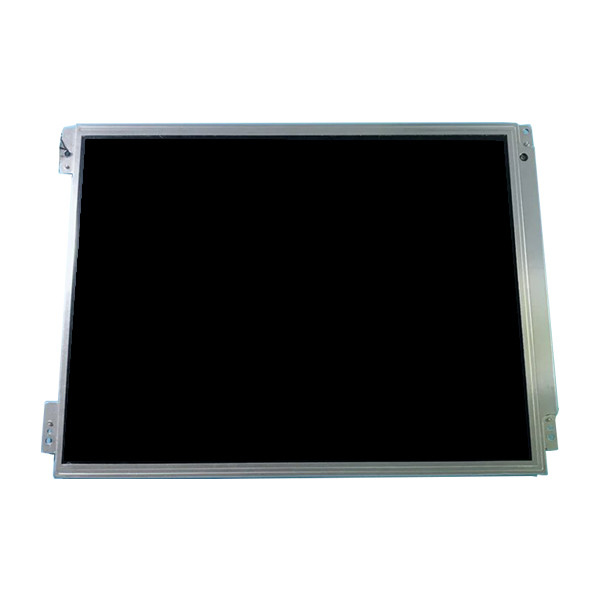

NL10276BC24-21BD LCD Panel 12.1 inch TFT LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC24-21BD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276BC24-21BD | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Active Area: | 245.76(W)×184.32(H) Mm |
| Outline Dim.: | 260.5 × 203 × 11 (H×V×D) | Bezel Opening: | 249.0(W)×187.5(H) Mm |
| Used For: | Industrial | Luminance: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | ||
Product Description
NL10276BC24-21BD LCD Panel 12.1 inch TFT LCD Screen Display
NL10276BC24-21BD LCD Panel Product details :
| NEC LCD Screen NL10276BC24-21BD | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC24-21BD |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline (mm) | 260.5 × 203 × 11 (H×V×D) |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/15 (Typ.)(Tr/Td) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transflective |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 4 strings WLED , 70K hours , Optional |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, Air Bonding |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| NL10276BC24-21BD LCD Panel 12.1 inch TFT LCD Screen Display | |
NL10276BC24-21BD LCD Screen Why choose us?
We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.
1. Bulk orders will be provided to you at an acceptable low price.
2. Wide range of parts, please visit our store to see more.
3. Fast Delivery-Most items will be shipped within 24 hours.
4. Provide extensive after-sales support through messages, emails, etc.
5. Friendly return policy.
NL10276BC24-21BD LCD Screen Specifications :
Designed as a seamless replacement for your existing screen, the NL10276BC24-21BD LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.
Before making your purchase, we highly recommend examining the provided picture to verify that the NL10276BC24-21BD LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.
NL10276BC24-21BD LCD Panel Shipping and Package :
NL10276BC24-21BD LCD Screen Quality & Warranty:
In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.
We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.
Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.
NL10276BC24-21BD LCD Panel FAQ :
Q: How long will I receive my goods NL10276BC24-21BD?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NL10276BC24-21BD?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL10276BC24-21BD to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
