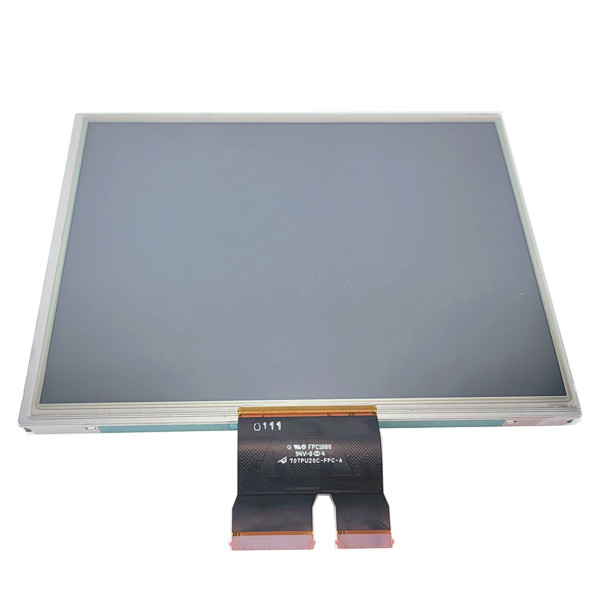

30 pins Touch panel NL10276BC20-18KD LCD Display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC20-18KD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276BC20-18KD | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 210.4(W)×157.8(H) Mm |
| Used For: | Industrial | Luminance: | 390 Cd/m² (Typ.) |
| Outline (mm): | 228(W)×178.5(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
Product Description
30 pins Touch panel NL10276BC20-18KD LCD Display screen
NL10276BC20-18KD LCD Panel Product details :
| NEC LCD Screen NL10276BC20-18KD | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC20-18KD |
| Screen Size | 10.4inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 123PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 210.4(W)×157.8(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline (mm) | 228(W)×178.5(H) mm |
| Treatment | Anti Fingerprint + Antiglare, Hard coating (2H) |
| Luminance | 380 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/15 (Typ.)(Tr/Td) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 2 strings WLED , 70K hours , Without Driver |
| Mass | 530/590g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, Air Bonding |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 30 pins Touch panel NL10276BC20-18KD LCD Display screen | |
NL10276BC20-18KD LCD Screen Product Quality Assurance:
Our product is sourced directly from trusted manufacturers, ensuring that it is original and brand new. We do not compromise on quality, and we stand behind the authenticity of every item we sell.
Before any product is dispatched to our customers, it undergoes rigorous testing by our team of experienced engineers. These tests are comprehensive and thorough, designed to verify that each aspect of the LCD screen meets our strict quality standards.
Only after our engineers confirm that all tests have been successfully completed and that the product is in perfect working condition will it be sent out to the buyer. This meticulous process ensures that you receive a product that performs reliably and consistently.
We understand the importance of peace of mind when making a purchase, which is why we assure you that our products are thoroughly inspected and tested before shipment. You can rest assured knowing that the NL10276BC20-18KD LCD screen you receive from our store is of the highest quality.
Should you encounter any issues with your purchase, please don't hesitate to contact us. We are committed to providing excellent customer service and will work tirelessly to resolve any concerns you may have.
NL10276BC20-18KD LCD Panel Shipping and Package :
NL10276BC20-18KD LCD Screen Returns:
We accept returns of any unused item in its original packaging within 30 days of delivery. This timeframe allows you to thoroughly assess the product and ensures you have ample time to decide if it meets your needs.
When initiating a return, please ensure that the item is in its original condition and packaging to facilitate a smooth return process. Items that are damaged or not in their original packaging may be subject to a restocking fee.
Please note that buyers are responsible for the round (two-way) shipping costs associated with returning the item. This includes the shipping cost to return the item to us as well as the initial shipping cost incurred when the item was delivered to you.
Once we receive the returned item and verify its condition, we will process the refund promptly. Refunds will be issued using the original payment method, providing you with a hassle-free experience.
NL10276BC20-18KD LCD Screen Video Recording Instructions:
1. Make sure the motherboard is working properly, then install and install it properly.
2. Model and fragile label can be seen in the video with our company logo (YONGS)
3. If you cannot use it correctly according to the operation, we will process the answer as soon as possible.
As long as the confirmation is our reason, our company will bear the responsibility.
NL10276BC20-18KD LCD Panel FAQ :
Q: Can I pay my order of NL10276BC20-18KD via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of NL10276BC20-18KD?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of NL10276BC20-18KD to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods NL10276BC20-18KD?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
