HSD070IDW1-C00 LCD Panel Module 7.0 inch 800*480 TFT LCD Screen Display

Brand Name:	HannStar
Model Number:	HSD070IDW1-C00
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

HSD070IDW1-C00

Diagonal Size:

Resolution:

800(RGB)×480, WVGA 134PPI

Active Area:

153.6(W)×86.64(H) Mm

Outline Dim.:

165(W)×104(H) ×5.4(D) Mm

Bezel Opening:

156.4(W)×89.04(H) Mm

Contrast Ratio:

500:1 (Typ.) (TM)

Display Mode:

TN, Normally White, Transmissive

Used For:

Automotive Display

Signal Interface:

Parallel RGB (1 Ch, 6/8-bit) , 60 Pins FPC

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD070IDW1-C00 LCD Panel Module 7.0 inch 800*480 TFT LCD Screen Display

HSD070IDW1-C00 LCD Panel Product details :

HannStar LCD Screen HSD070IDW1-C00
Panel Brand	HannStar
Model P/N	HSD070IDW1-C00
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×86.64(H) mm
Bezel Opening	156.0(W)×89.04(H) mm
Outline Size	165(W)×104(H) ×5.4(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	75/75/60/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	5/20 (Typ.)(Tr/Td)
Display Colors	262K/16.2M
Lamp Type	3S6P WLED , 20K hours , Without Driver
Touch Screen	Without
Weight	130g (Typ.)
Application	Automotive Display
Signal Interface	Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC
Input Voltage	3.0/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²)
HSD070IDW1-C00 LCD Panel Module 7.0 inch 800*480 TFT LCD Screen Display

HSD070IDW1-C00 LCD Screen Why choose us?

We have more than 10 years of experience in the electronics industry and our products are selling well in both domestic and offshore markets.

1. Bulk orders will be provided to you at an acceptable low price.

2. Wide range of parts, please visit our store to see more.

3. Fast Delivery-Most items will be shipped within 24 hours.

4. Provide extensive after-sales support through messages, emails, etc.

5. Friendly return policy.

HSD070IDW1-C00 LCD Screen Specifications :

Designed as a seamless replacement for your existing screen, the HSD070IDW1-C00 LCD screen offers a perfect fit, ensuring compatibility with your device without any compromises in performance or functionality.

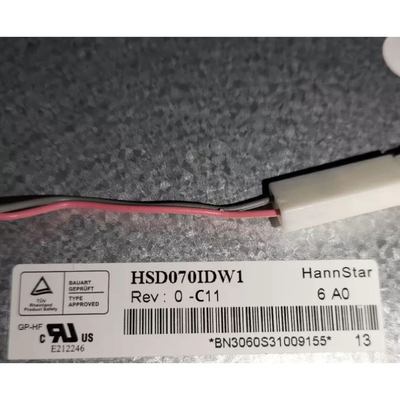

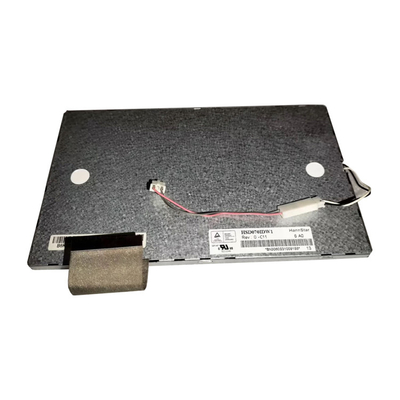

Before making your purchase, we highly recommend examining the provided picture to verify that the HSD070IDW1-C00 LCD screen matches the size and dimensions of your current speedometer screen. This step is crucial in ensuring a smooth transition and optimal functionality upon installation.

HSD070IDW1-C00 LCD Panel Shipping and Package :
HSD070IDW1-C00 LCD Panel Module 7.0 inch 800*480 TFT LCD Screen Display 0

HSD070IDW1-C00 LCD Screen Quality & Warranty:

In our commitment to ensuring customer satisfaction, we employ rigorous testing procedures on all LCD (touch screen) products and associated equipment to guarantee their quality. We understand that receiving a faulty product can be frustrating, which is why we take full responsibility for ensuring the quality of every item we provide.

We recognize that circumstances may vary, and sometimes products may not meet expectations even after the initial inspection.

Therefore, if you discover any issues after the initial 3-day period and the item has been in your possession for more than 7 days, it will be considered used or second-hand. In such cases, we will still honor our commitment to customer satisfaction by offering a replacement service once the return item is received.

HSD070IDW1-C00 LCD Panel FAQ :

Q: How to make payment of HSD070IDW1-C00 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of HSD070IDW1-C00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of HSD070IDW1-C00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of HSD070IDW1-C00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
