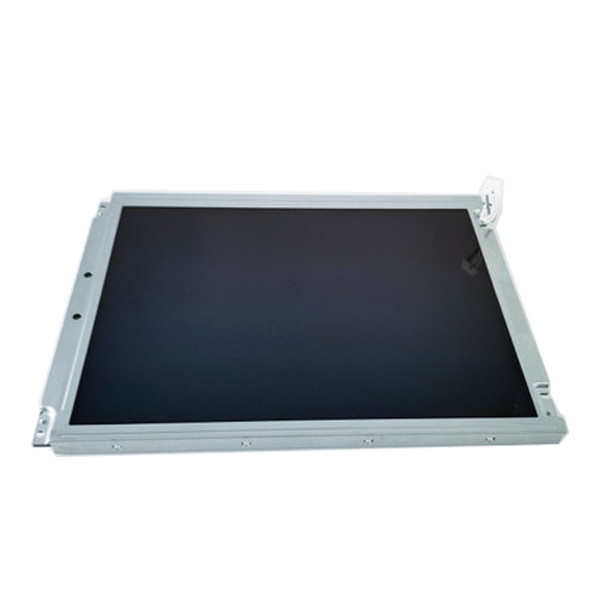

Industry 1024*768 NL10276BC20-05Y lcd Display Screen

Brand Name:	NEC
Model Number:	NL10276BC20-05Y
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NL10276BC20-05Y

Screen Size:

10.4''

Pixel Format:

1024(RGB)×768, XGA 123PPI

Display Area:

210.4(W)×157.8(H) Mm

Pixel Layout:

RGB Vertical Stripe

Bezel Opening:

215.4(W)×161.8(H) Mm

Color Depth:

Work Mode:

TN, Normally White, Transmissive

Supply Ability:

100000 Unit/Units per Month

Product Description

Industry 1024*768 NL10276BC20-05Y lcd Display Screen

Product details :

NEC LCD Screen NL10276BC20-05Y
Manufacturer	NEC
Model Name	NL10276BC20-05Y
Screen Size	10.4inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 123PPI
Pixel layout	RGB Vertical Stripe
Active Area	210.4(W)×157.8(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline (mm)	243(H)×185.1(V) mm
Treatment	Hard coating (3H)
Luminance	-
Contrast Ratio	-
Viewing angle	-
Response	-
View Direction	-
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	CCFL [2 pcs] , Optional
Mass	530/550g (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C
Industry 1024*768 NL10276BC20-05Y lcd Display Screen

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Industry 1024*768 NL10276BC20-05Y lcd Display Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Shipping:

You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.

FAQ:

Q: If I place order now,when will you ship the goods of NL10276BC20-05Y?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of NL10276BC20-05Y to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of NL10276BC20-05Y via credit card ?

A: Yes!you can use your credit card through your Paypal account.
