Supplying NL10276BC12-02 Display Screen Panel for Industrial

Brand Name:	NEC
Model Number:	NL10276BC12-02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NL10276BC12-02

Screen Size:

6.3''

Pixel Format:

1024(RGB)×768, XGA 201PPI

Display Area:

129.024(W)×96.768(H) Mm

Pixel Layout:

RGB Vertical Bar

Luminance:

200 Cd/m² (Typ.)

Viewing Angle:

50/50/30/45 (Typ.)(CR≥10)

Outline (mm):

178.8(W)×126.8(H) ×12.5(D) Mm

Supply Ability:

100000 Unit/Units per Month

Product Description

Supplying NL10276BC12-02 Display Screen Panel for Industrial

Product details :

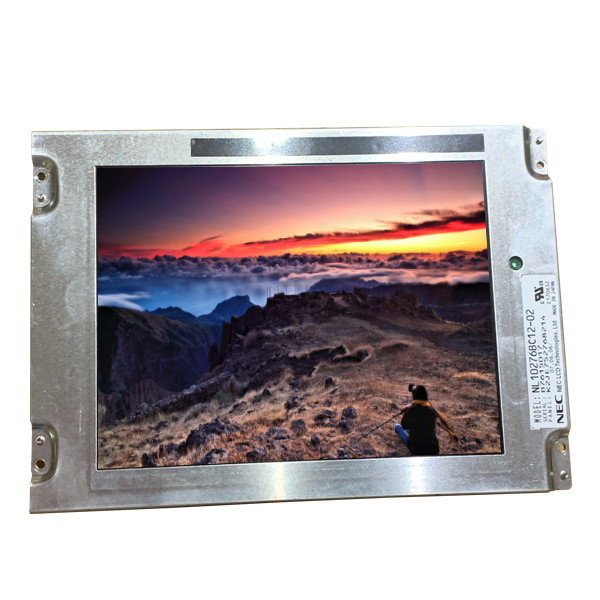

NEC LCD Screen NL10276BC12-02
Manufacturer	NEC
Model Name	NL10276BC12-02
Screen Size	6.3nch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 201PPI
Pixel layout	RGB Vertical Stripe
Active Area	129.024(W)×96.768(H) mm
Bezel Opening	133.8(W)×101.4(H) mm
Outline (mm)	178.8(W)×126.8(H) ×12.5(D) mm
Treatment	Antiglare, Hard coating (2H), Antireflection
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing angle	60/60/45/60 (Typ.)(CR≥10)
Response	6/15 (Typ.)(Tr/Td)
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 40% NTSC
Backlight	2 pcs CCFL , Without Driver
Mass	265/295g (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -20 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
Supplying NL10276BC12-02 Display Screen Panel for Industrial

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Supplying NL10276BC12-02 Display Screen Panel for Industrial 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

Shipping:

You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.

FAQ:

Q: How can I trace my order of NL10276BC12-02 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of NL10276BC12-02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of NL10276BC12-02 via credit card ?

A: Yes!you can use your credit card through your Paypal account
