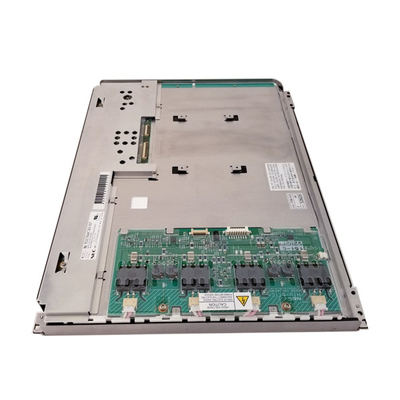

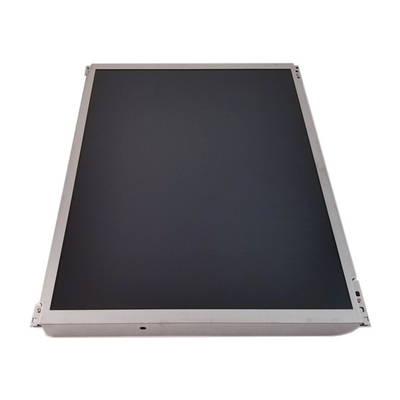

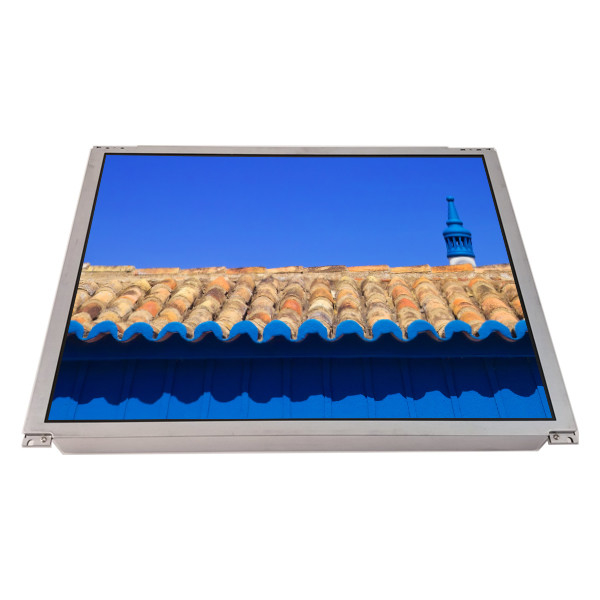

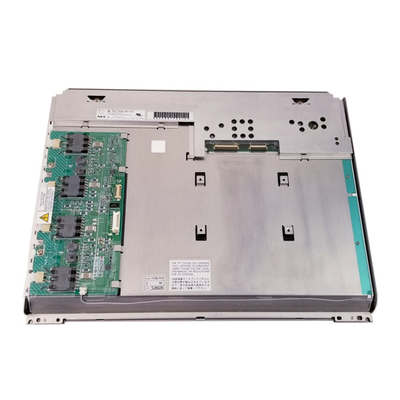

15.0 inch NL10276AC30-07 LCD screen Display panel with Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276AC30-07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276AC30-07 | Screen Size: | 15.0'' |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600, WSVGA 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Pixel Layout: | RGB Vertical Bar | Panel Type: | A-Si TFT-LCD, LCM |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline (mm): | 330(W)×256(H)×30(D) Mm |
Product Description
15.0 inch NL10276AC30-07 LCD screen Display panel with Industrial
Product details :
| NEC LCD Screen NL10276AC30-07 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276AC30-07 |
| Screen Size | 15.0inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 85PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline (mm) | 330(W)×256(H)×30(D) mm |
| Treatment | Hard coating (2H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 10/10 (Typ.)(Tr/Td) ms |
| Best View on | Symmetry |
| Work Mode | Normally Black, Transmissive |
| Support Color | 16.7M 60% NTSC |
| Backlight | 8 pcs CCFL , With Inverter |
| Mass | 1.10/1.20Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | - |
| Signal Type | TTL (2 ch, 8-bit) , Connector 75 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C |
| 15.0 inch NL10276AC30-07 LCD screen Display panel with Industrial | |
