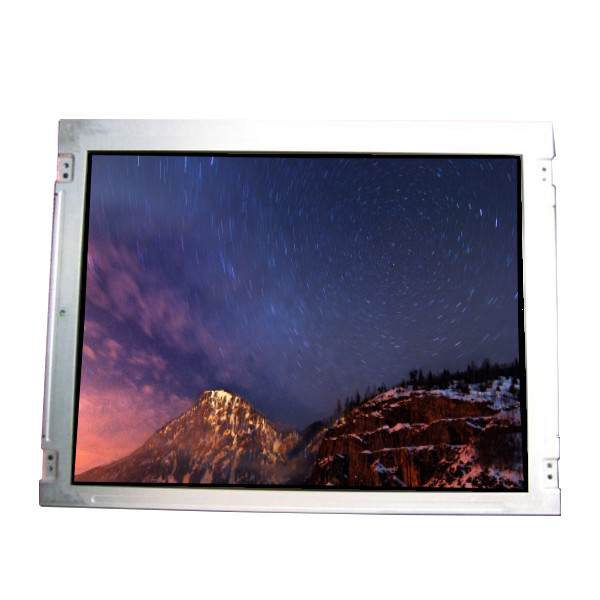

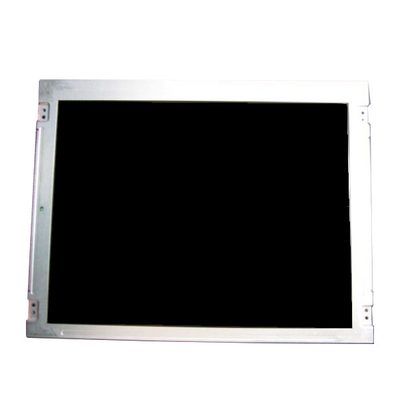

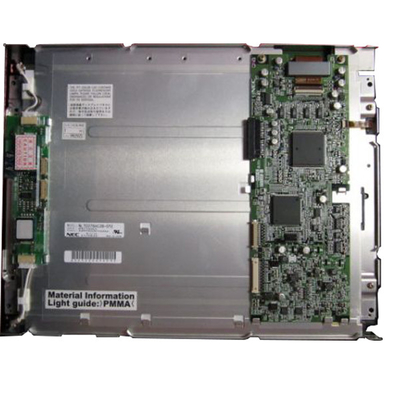

New NL10276AC28-01E 41 pins 91PPI LCD Screen Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276AC28-01E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL10276AC28-01E | Screen Size: | 14.1'' |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768, XGA 91PPI | Active Area: | 285.696(W)×214.272(H) Mm |
| Bezel Opening: | 290.4(W)×219.0(H) Mm | Contrast Ratio: | 150 : 1 (Typ.) (TM) |
| Luminance: | 200 Cd/m² (Typ.) | Pixel Layout: | RGB Vertical Bar |
Product Description
New NL10276AC28-01E 41 pins 91PPI LCD Screen Panel Display
Product details :
| NEC LCD Screen NL10276AC28-01E | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276AC28-01E |
| Screen Size | 14.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 91PPI |
| Pixel layout | RGB vertical bar |
| Active Area | 285.696(W)×214.272(H) mm |
| Bezel Opening | 290.4(W)×219.0(H) mm |
| Outline (mm) | 330(H)×255(V) ×20.5(D) mm |
| Treatment | Hard coating (2H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 150 : 1 (Typ.) (TM) |
| Viewing angle | 50/50/20/35 (Typ.)(CR≥10) |
| Response | 25 (Max.)(Tr) |
| View Direction | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color 40% NTSC |
| Backlight | 2 pcs CCFL , With Inverter |
| Mass | 1.22/1.30Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | - |
| Touchscreen | - |
| Signal Type | Analog RGB , 41 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| New NL10276AC28-01E 41 pins 91PPI LCD Screen Panel Display | |
