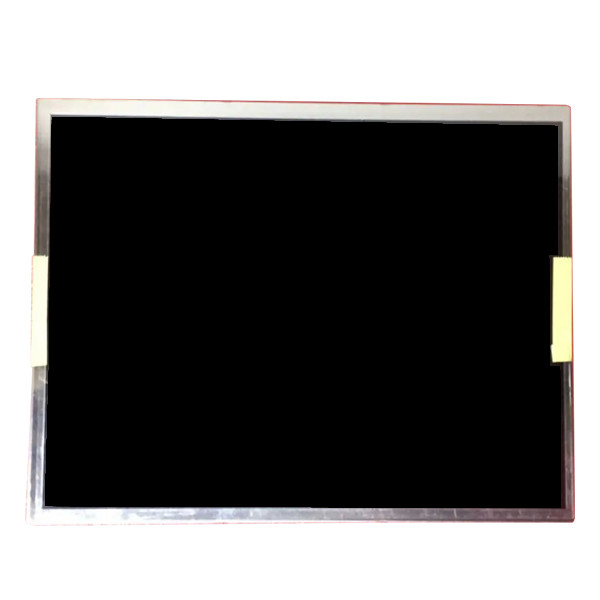

20 pins Connector NL8060BC31-51C lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC31-51C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL8060BC31-51C | Screen Size: | 12.1'' |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600, SVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Luminance: | 900 Cd/m² (Typ.) | Used For: | Industrial |
Product Description
20 pins Connector NL8060BC31-51C lcd display panel
Product details :
| NEC LCD Screen NL8060BC31-51C | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC31-51C |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 800(RGB)×600, SVGA 82PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline (mm) | 260.5 × 203 × 9.2 (H×V×D) |
| Treatment | Clear, Hard coating (2H), Antireflection |
| Luminance | 900 (Typ.)(cd/m²) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/15 (Typ.)(Tr/Td) ms |
| View Direction | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 5 strings WLED , 70K hours , No Driver |
| Mass | 490/540g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| 20 pins Connector NL8060BC31-51C lcd display panel | |
