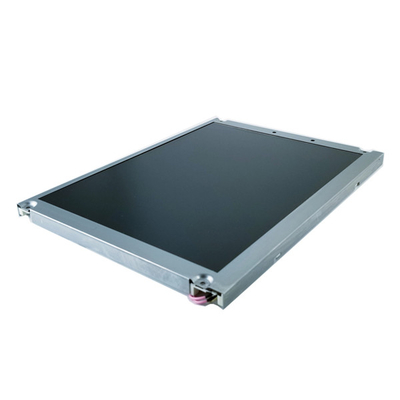

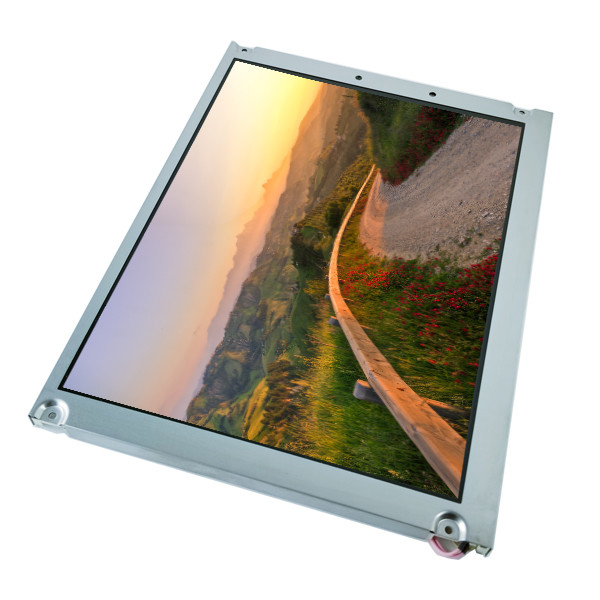

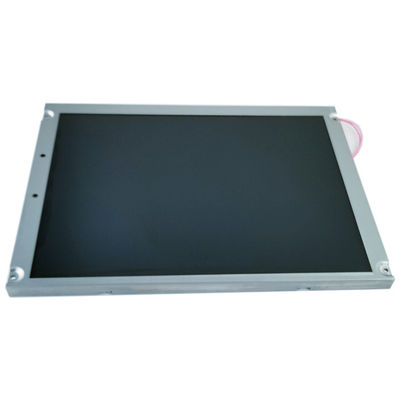

RGB 800*480 NL8060BC31-27D LCD screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC31-27D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL8060BC31-27D | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.0(W)×187.5(H) Mm | Pixel Layout: | RGB Vertical Stripe |
| Luminance: | 400 Cd/m² (Typ.) | ||
Product Description
RGB 800*480 NL8060BC31-27D LCD screen panel
NL8060BC31-27D LCD Panel Product details :
| NEC LCD Screen NL8060BC31-27D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC31-27D |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 82PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline (mm) | 280(H)×210(V) ×13.7(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 8/25 (Typ.)(Tr/Td) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Support Color | 262K 40% NTSC |
| Backlight | CCFL [2 pcs] , W/O Driver |
| Mass | 740/770g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 41 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
| Max. Ratings | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| RGB 800*480 NL8060BC31-27D LCD screen panel | |
NL8060BC31-27D LCD Screen Specification :
Installation Instructions: Not Included. Note: There is a layer of polarizer film under the protective film on the front of the panel. If the display appears blurry after installation, please remove the polarizer film.
Quality Assurance: Prior to dispatch, we conduct comprehensive quality checks and testing to ensure product reliability and performance.
Compatibility: This item is suitable for replacing touch panels that are broken, damaged, cracked, or otherwise unusable.
NL8060BC31-27D LCD Panel Shipping and Package :
NL8060BC31-27D LCD Screen Return Policy:
Warranty Coverage:
Used products: 90 days warranty.
New products: 180 days warranty.
Please note that this warranty does not cover consumables.
We provide a warranty for all of our products to ensure customer satisfaction and peace of mind.Buyers are responsible for bearing the shipping costs when returning both defective and non-defective items to us.Return items should be in the same good condition as when we originally sent them, without any damage.Approval by our team is required for all returned items, and they should be in their original box as when initially sent.In the case of receiving physically damaged items, please report this within 2 days of receipt.For all NON-Seller Mistake returns, a 15% re-stocking fee is applicable, and shipping and handling charges are non-refundable. (For example, if you bought the wrong item)
NL8060BC31-27D LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of NL8060BC31-27D ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NL8060BC31-27D ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of NL8060BC31-27D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
