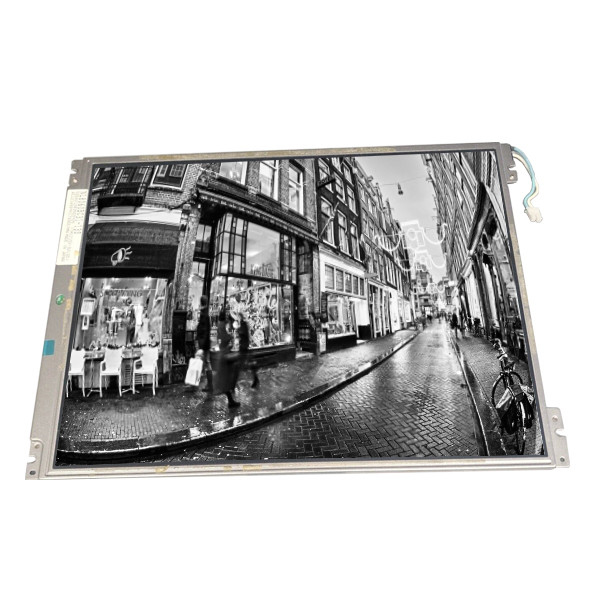

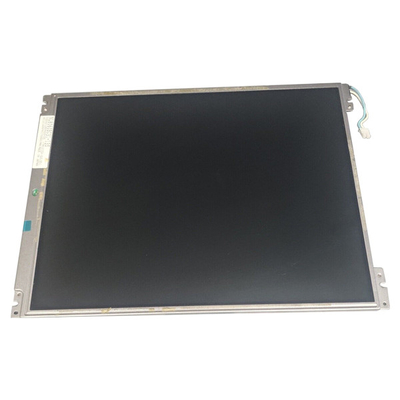

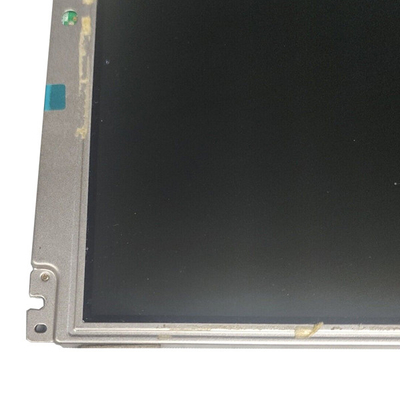

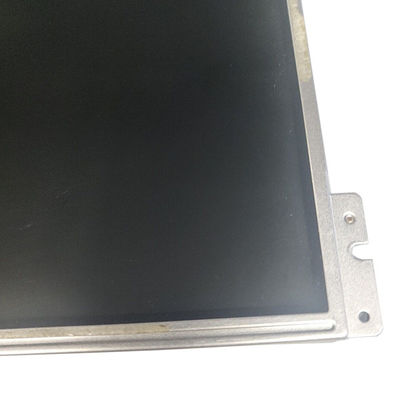

LCD display screen 12.1 inch 41 pins Connector NL8060BC31-17D
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC31-17D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL8060BC31-17D | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
| Bezel Opening: | 249.0(W)×187.5(H) Mm | Pixel Layout: | RGB Vertical Stripe |
| Luminance: | 350 Cd/m² (Typ.) | ||
Product Description
LCD display screen 12.1 inch 41 pins Connector NL8060BC31-17D
NL8060BC31-17D LCD Panel Product details :
| NEC LCD Screen NL8060BC31-17D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC31-17D |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 800(RGB)×600, SVGA 82PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline (mm) | 280(H)×210(V)×13.7(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1350:1 (Typ.) (TM) |
| Viewing angle | 55/55/40/50 (Typ.)(CR≥10) |
| Response | 15/55 (Typ.)(Tr/Td) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 43% NTSC |
| Backlight | CCFL [2 pcs] , W/O Driver |
| Mass | 750/780g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 41 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
| Max. Ratings | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| LCD display screen 12.1 inch 41 pins Connector NL8060BC31-17D | |
NL8060BC31-17D LCD Screen Specification :
Installation Instructions: Not Included. Note: There is a layer of polarizer film under the protective film on the front of the panel. If the display appears blurry after installation, please remove the polarizer film.
Quality Assurance: Prior to dispatch, we conduct comprehensive quality checks and testing to ensure product reliability and performance.
Compatibility: This item is suitable for replacing touch panels that are broken, damaged, cracked, or otherwise unusable.
NL8060BC31-17D LCD Panel Shipping and Package :
NL8060BC31-17D LCD Screen Return Policy:
Warranty Coverage:
Used products: 90 days warranty.
New products: 180 days warranty.
Please note that this warranty does not cover consumables.
We provide a warranty for all of our products to ensure customer satisfaction and peace of mind.Buyers are responsible for bearing the shipping costs when returning both defective and non-defective items to us.Return items should be in the same good condition as when we originally sent them, without any damage.Approval by our team is required for all returned items, and they should be in their original box as when initially sent.In the case of receiving physically damaged items, please report this within 2 days of receipt.For all NON-Seller Mistake returns, a 15% re-stocking fee is applicable, and shipping and handling charges are non-refundable. (For example, if you bought the wrong item)
