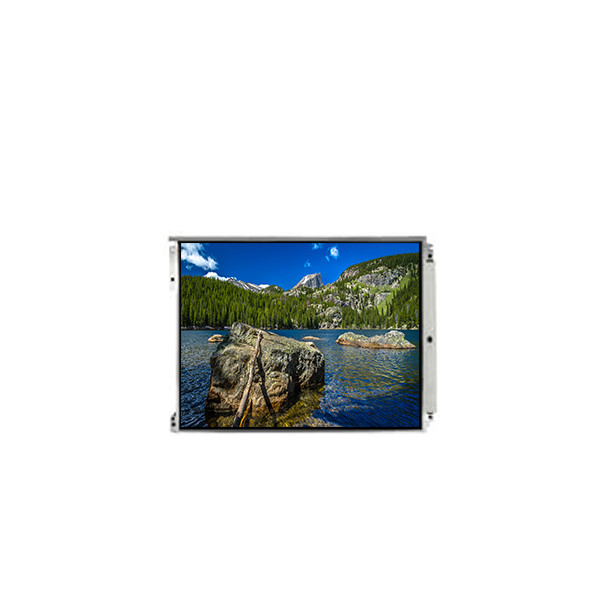

NL8060BC26-15 800*600 lcd display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC26-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL8060BC26-15 | Screen Size: | 10.4'' |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.2(W)×162.4(H) Mm | Luminance: | 110 Cd/m² (Typ.) |
| Pixel Layout: | RGB Vertical Stripe | Used For: | Laptop |
Product Description
NL8060BC26-15 800*600 lcd display screen
Product details :
| NEC LCD Screen NL8060BC26-15 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC26-15 |
| Screen Size | 10.4inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 96PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.2(W)×162.4(H) mm |
| Outline (mm) | 237.8(W)×170(H) ×6(D) mm |
| Treatment | Antireflection |
| Luminance | 100 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing angle | - |
| Response | - |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 40% NTSC |
| Backlight | 1 pcs CCFL , Without Driver |
| Mass | - |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 14 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| NL8060BC26-15 800*600 lcd display screen | |
