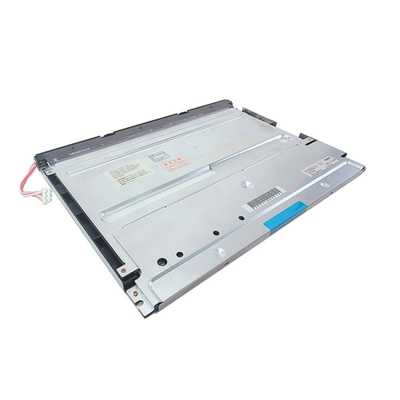

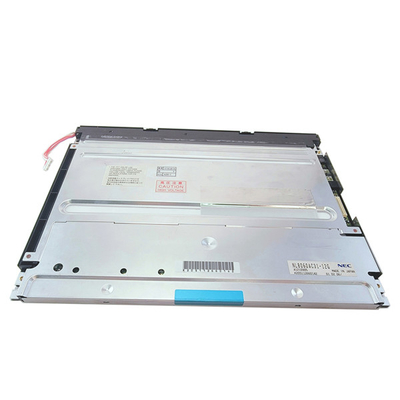

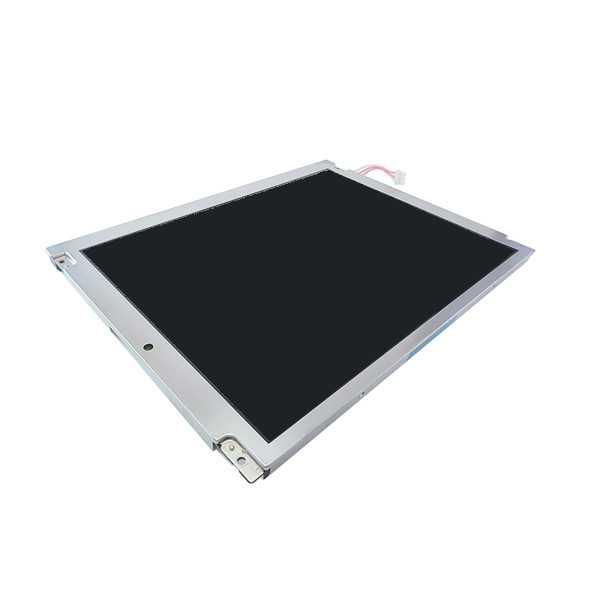

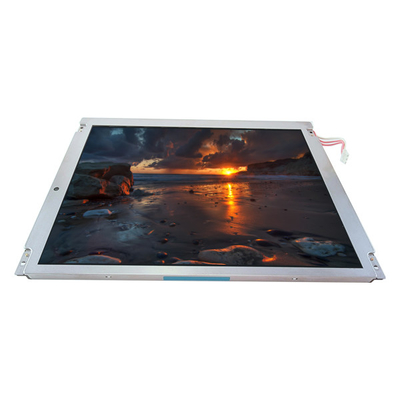

NL8060AC31-12G lcd panel display For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060AC31-12G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL8060AC31-12G | Screen Size: | 12.1'' |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600, SVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
| Outline Size: | 280(W)×210(H)×13.7(D) Mm | Bezel Opening: | 247.6(W)×186.1(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Weight: | 700/730g (Typ./Max.) |
Product Description
NL8060AC31-12G lcd panel display For Industrial
Product details :
| NEC LCD Screen NL8060AC31-12G | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060AC31-12G |
| Screen Size | 12.1inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 247.6(W)×186.1(H) mm |
| Outline (mm) | 280(W)×210(H)×13.7(D) mm |
| Treatment | Clear, Antireflection |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing angle | 55/55/40/50 (Typ.)(CR≥10) |
| Response | 40/80 (Max.)(Tr/Td) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 43% NTSC |
| Backlight | CCFL [2 pcs] , With Inverter |
| Mass | 700/730g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 41 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| NL8060AC31-12G lcd panel display For Industrial | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
contact us:
1: Our company is a professional and reliable seller. We guarantee you a safe and enjoyable shopping experience. 60-day money-back guarantee.
2: Our company can provide you with 2.5-30 inch LCD screen (flat TFT) and touch screen (digitizer), generally used for PDA, GPS, MP3, MP4, MID, mobile phone, car DVD player, notebook computer, UMPC, Car DVD radios, digital cameras and industrial products.
3: We will reply your message as soon as possible. However, we may not be able to immediately respond to your message due to the high volume of emails we receive every day, as well as different time zones and holidays. Please allow us to respond within 24 hours. It is a pleasure to process your purchases from us.
FAQ:
Q: If I place order now,when will you ship the goods of NL8060AC31-12G?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of NL8060AC31-12G?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods NL8060AC31-12G?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of NL8060AC31-12G?
A: We accept T/T , Paypal , western union .
