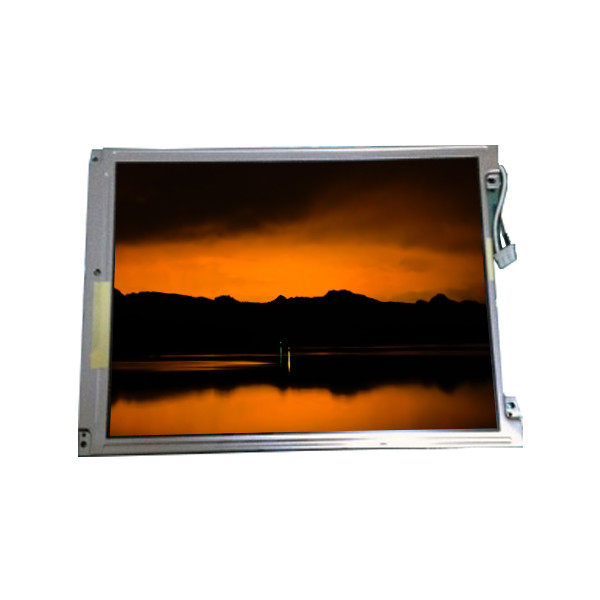

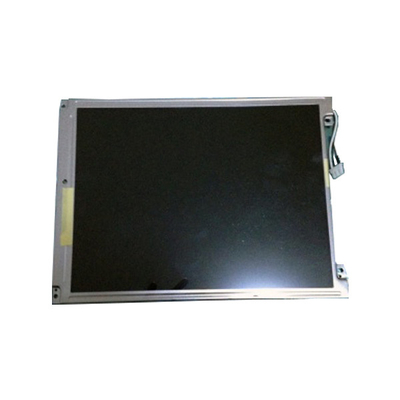

For Laptop Industrial 10.4 inch NL8060AC26-04 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060AC26-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL8060AC26-04 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Pixel Layout: | RGB Vertical Stripe | Bezel Opening: | 215.4(W)×161.8(H) Mm |
| Luminance: | 70 Cd/m² (Typ.) | Contrast Ratio: | 150:1 (Typ.) (TM) |
| Used For: | Laptop Industrial | ||
Product Description
For Laptop Industrial 10.4 inch NL8060AC26-04LCD Display Screen
NL8060AC26-04 LCD Panel Product details :
| NEC LCD Screen NL8060AC26-04 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060AC26-04 |
| Screen Size | 10.4inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Number of pixels | 800(RGB)×600, SVGA 96PPI |
| Pixel layout | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline (mm) | 243(W)×179(H) ×8(D) mm |
| Treatment | Antireflection |
| Luminance | 70 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 40 (Max.)(Tr) |
| View Direction | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 42% NTSC |
| Backlight | 1 pcs CCFL , Without Driver |
| Mass | - |
| Used for | Laptop Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 41 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
| Max. Ratings | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| For Laptop Industrial 10.4 inch NL8060AC26-04LCD Display Screen | |
Precautions for Use of NL8060AC26-04 LCD Screen Display:
Operating Temperature Range: Ensure that the operating temperature remains within the specified range of 0 to 50 °C. Operating the LCD screen display outside this range may result in performance degradation or damage.
Storage Temperature: When storing the LCD screen display, it is crucial to maintain a temperature within the range of -20 to 60 °C. Exposing the display to temperatures beyond this range during storage can lead to irreparable damage or affect its operational efficiency.
Temperature Fluctuations: Avoid sudden temperature fluctuations, as they can impact the integrity and longevity of the LCD screen display. Gradual changes in temperature are preferable to prevent thermal stress on the components.
Environmental Conditions: Ensure that the LCD screen display is installed in an environment with controlled temperature and humidity levels. Extreme temperatures or high humidity can adversely affect the performance and lifespan of the display.
Thermal Management: Implement adequate thermal management solutions such as heat sinks or fans to dissipate heat effectively, especially when operating the display in environments approaching the upper limit of the temperature range.
Avoid Direct Sunlight: Direct exposure to sunlight should be minimized to prevent overheating and potential damage to the LCD screen display. Use shading or protective covers when installing the display in areas prone to sunlight exposure.
Regulatory Compliance: Adhere to regulatory guidelines and manufacturer recommendations regarding temperature conditions for the safe and optimal use of the LCD screen display. Compliance with these specifications ensures reliable performance and longevity.
Regular Inspection: Periodically inspect the LCD screen display for any signs of overheating, discoloration, or abnormal operation. Promptly address any issues to prevent further damage and ensure uninterrupted functionality.
Professional Installation: Entrust the installation and maintenance of the LCD screen display to qualified professionals familiar with the recommended operating conditions and handling procedures. Improper installation can compromise performance and safety.
By following these precautions and guidelines, users can maximize the reliability, longevity, and performance of the HSD089IFW1-D00 LCD screen display in various operating environments.
NL8060AC26-04 LCD Panel Shipping and Package :
NL8060AC26-04 LCD Screen Packing method :
To ensure the safety and protection of your NL8060AC26-04 LCD screen during transportation, we employ a robust packing method:
Outer Packing: The outer packing consists of a sturdy carton designed to withstand the rigors of shipping. This carton provides an additional layer of protection against external impacts and handling during transit.
Inner Packing: Inside the carton, the LCD screen is securely cushioned with foam padding. This inner packing material absorbs shocks and vibrations, effectively minimizing the risk of damage to the screen during transportation.
Strong and Safe: The combination of strong carton outer packing and foam inner packing ensures that your LCD screen is adequately protected against potential damage. Our packing method is designed to withstand the challenges of transportation and delivery, keeping your screen safe and intact upon arrival.
Avoiding Breakage: By using high-quality packing materials and meticulous packing techniques, we minimize the risk of breakage during transit. Our goal is to ensure that your NL8060AC26-04 LCD screen reaches you in perfect condition, ready for use.
NL8060AC26-04 LCD Screen Pre-sales and Post-sales Assistance:
At our company, we prioritize customer satisfaction by offering comprehensive pre-sales and post-sales assistance through our dedicated Technical Support Department. Whether you're considering a purchase or have already received your product, our team is committed to addressing all your inquiries promptly and efficiently.
Pre-sales Assistance:
Before making a purchase decision, our knowledgeable technical support team is available to provide detailed information about the NL8060AC26-04 LCD screen and answer any questions you may have.
Whether you need assistance with product specifications, compatibility, or features, we are here to help you make an informed decision that meets your requirements.
Post-sales Assistance :
After receiving your product, our support team remains available to assist you with any issues or concerns you may encounter during installation, setup, or operation.
Should you encounter any difficulties or have questions about using the NL8060AC26-04 LCD screen, our experts are here to provide guidance and troubleshooting assistance.
NL8060AC26-04 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of NL8060AC26-04 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NL8060AC26-04 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of NL8060AC26-04 ?
A: The order will be shipped within 2-3 working days after received your payment.
