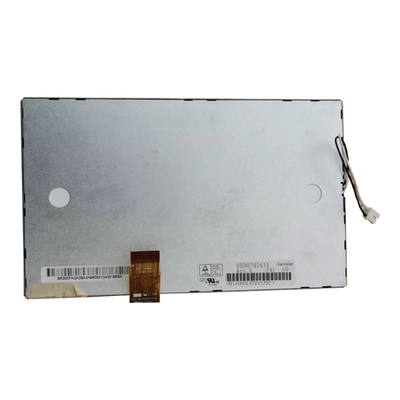

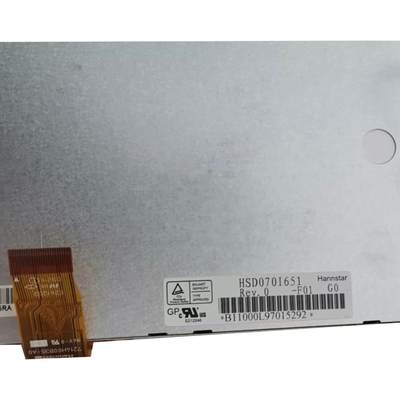

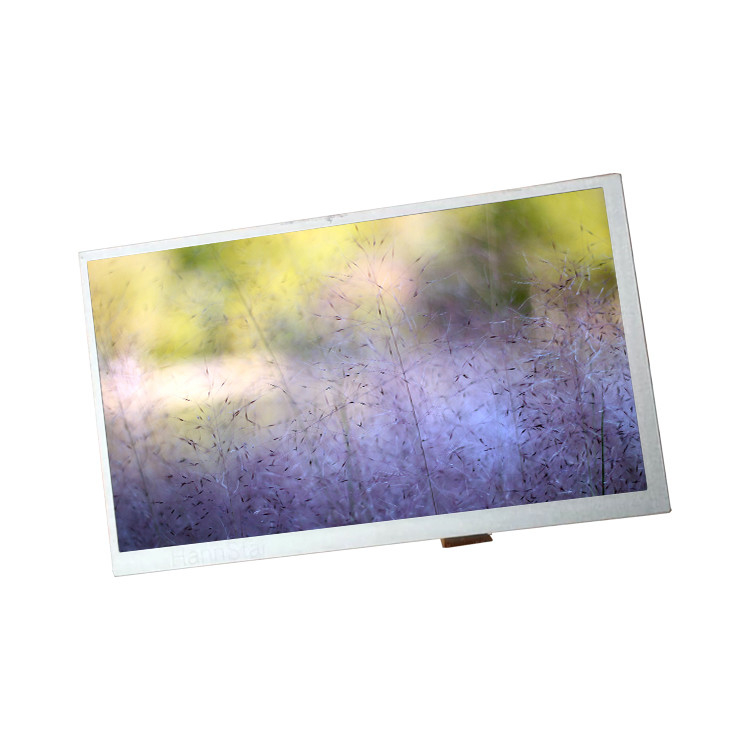

7.0 inch HSD070I651-F01 LCD Display 480*234 LCD screen monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070I651-F01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD070I651-F01 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×234 76PPI | Active Area: | 154.08(W)×86.58(H) Mm |
| Outline Dim.: | 164.9(H)×100(V)×6(D) Mm | Bezel Opening: | 156.4(W)×89.0(H) Mm |
| Treatment: | Antiglare, Hard Coating (3H) | Display Mode: | TN, Normally White, Transmissive |
| Designed For: | Digital Photo Frame / Portable DVD Player | Interface Type: | TFT Specific Analog RGB , 26 Pins |
Product Description
7.0 inch HSD070I651-F01 LCD Display 480*234 LCD screen monitor
HSD070I651-F01 LCD Panel Product details :
| HannStar LCD Screen HSD070I651-F01 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD070I651-F01 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×86.58(H) mm |
| Bezel Opening | 156.4(W)×89.0(H) mm |
| Outline Dim. | 164.9(H)×100(V)×6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | Full color |
| Light Source | WLED [3S5P] , 20K hours |
| Weight | 160g (Typ.) |
| Designed For | Digital Photo Frame / Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TFT Specific Analog RGB , 26 pins |
| Power Supply | 3.3/-/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 7.0 inch HSD070I651-F01 LCD Display 480*234 LCD screen monitor | |
