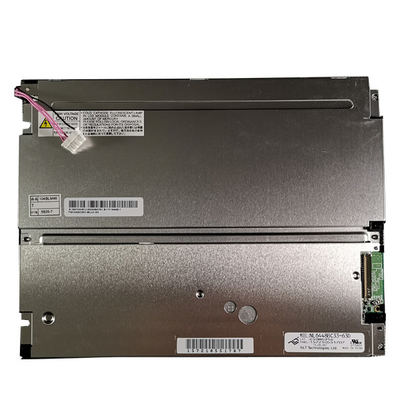

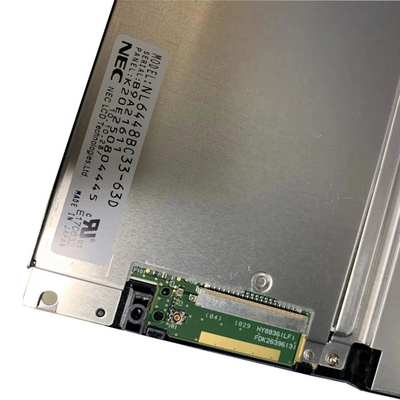

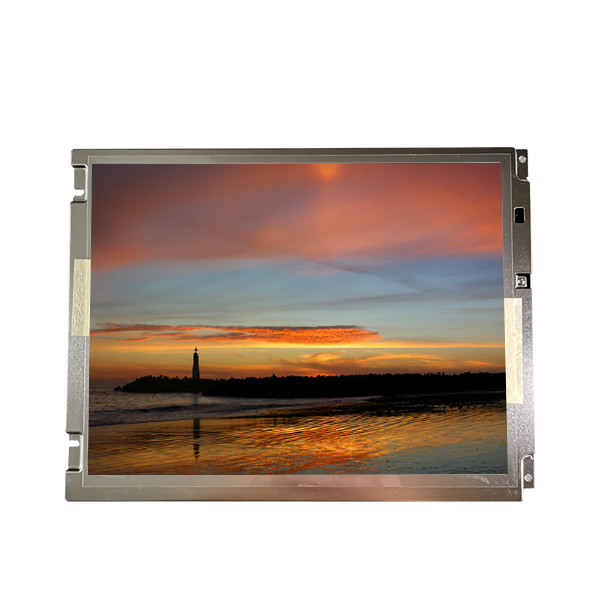

NL6448BC33-63D 10.4 inches 3.3V Typ LCD Screen Display Panel for Industrial and medical display application
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-63D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448BC33-63D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Number Of Pixels: | 640(RGB)×480, VGA 76PPI | Display Area: | 211.2(H)×158.4(V) Mm |
| Response Time: | 6/19 (Typ.)(Tr/Td) Ms | Open Area: | 215.4 × 161.8 Mm (H×V) |
| Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) | Display Mode: | TN, Normally White Display, Transmissive |
| Screen Weight: | 475/500g (Typ./Max.) | Support Color: | 262K/16.7M, 40% NTSC |
Product Description
NL6448BC33-63D 10.4 inches 3.3V Typ LCD Screen Display Panel for Industrial and medical display application
NL6448BC33-63D LCD Panel Product details :
| NEC LCD Screen NL6448BC33-63D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-63D |
| Screen Size | 10.4 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 640(RGB)×480 (VGA) 76PPI |
| Pixel layout | RGB vertical bar |
| Display size | 211.2 × 158.4 (H×V) mm |
| physical dimension | 243 × 185.1 × 11 (H×V×D) mm |
| Open area | 215.4(H)×161.8(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 450 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 6/19 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | CCFL [2 pcs], 50K hours, no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC33-63D 10.4 inches 3.3V Typ LCD Screen Display Panel for Industrial and medical display application | |
NL6448BC33-63D LCD Screen Specification :
Installation Instructions: Not Included. Note: There is a layer of polarizer film under the protective film on the front of the panel. If the display appears blurry after installation, please remove the polarizer film.
Quality Assurance: Prior to dispatch, we conduct comprehensive quality checks and testing to ensure product reliability and performance.
Compatibility: This item is suitable for replacing touch panels that are broken, damaged, cracked, or otherwise unusable.
NL6448BC33-63D LCD Panel Shipping and Package :
NL6448BC33-63D LCD Screen Return Policy:
Warranty Coverage:
Used products: 90 days warranty.
New products: 180 days warranty.
Please note that this warranty does not cover consumables.
We provide a warranty for all of our products to ensure customer satisfaction and peace of mind.Buyers are responsible for bearing the shipping costs when returning both defective and non-defective items to us.Return items should be in the same good condition as when we originally sent them, without any damage.Approval by our team is required for all returned items, and they should be in their original box as when initially sent.In the case of receiving physically damaged items, please report this within 2 days of receipt.For all NON-Seller Mistake returns, a 15% re-stocking fee is applicable, and shipping and handling charges are non-refundable. (For example, if you bought the wrong item)
