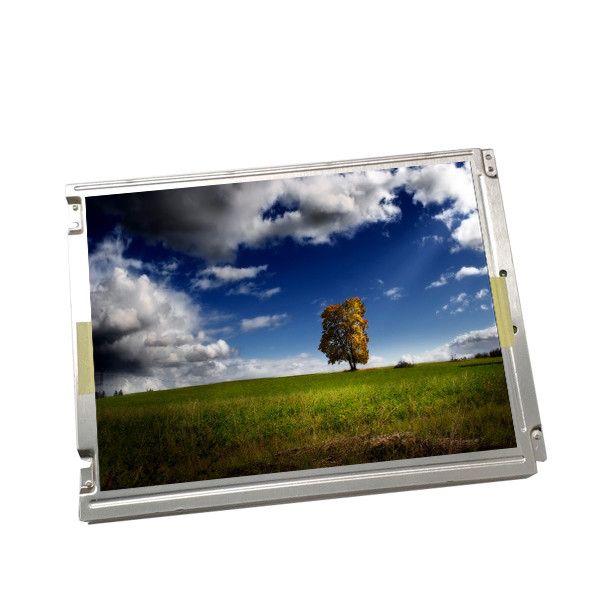

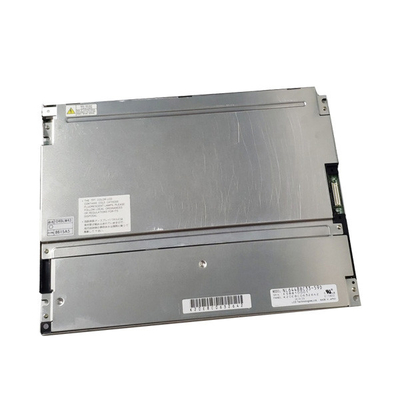

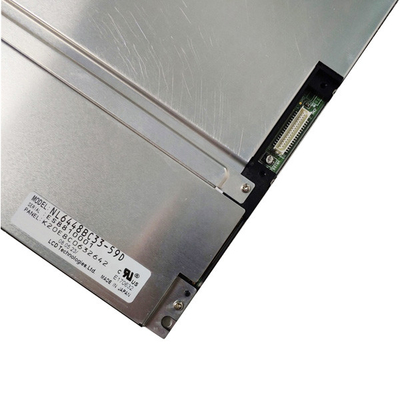

NL6448BC33-59D 10.4 inch 640*480 76PPI 262K 31 pins LCD Screen Display Panel for NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-59D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448BC33-59D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Number Of Pixels: | 640(RGB)×480, VGA 76PPI | Display Area: | 211.2(H)×158.4(V) Mm |
| Responding Speed: | 8/25 (Typ.)(Tr/Td) Ms | Visual Size: | 215.4 × 161.8 Mm (H×V) |
| Viewing Angle: | 70/70/45/55 (Typ.)(CR≥10) | Display Mode: | TN, Normally White Display, Transmissive |
| Screen Weight: | 475/500g (Typ./Max.) | Supply Voltage: | 3.3/5.0V (Typ.) |
Product Description
NL6448BC33-59D 10.4 inch 640*480 76PPI 262K 31 pins LCD Screen Display Panel for NEC
NL6448BC33-59D LCD Panel Product details :
| NEC LCD Screen NL6448BC33-59D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-59D |
| Screen Size | 10.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 243 × 185.1 × 11 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 450 (Typ.) |
| Contrast | 600: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 70/70/45/55 (Typ.)(CR≥10) |
| responding speed | 8/25 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 43% NTSC |
| Backlight type | 2 pcs CCFL, without driver |
| Screen weight | 475/500g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 3.3/5.0V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC33-59D 10.4 inch 640*480 76PPI 262K 31 pins LCD Screen Display Panel for NEC | |
NL6448BC33-59D LCD Screen Specification :
Installation Instructions: Not Included. Note: There is a layer of polarizer film under the protective film on the front of the panel. If the display appears blurry after installation, please remove the polarizer film.
