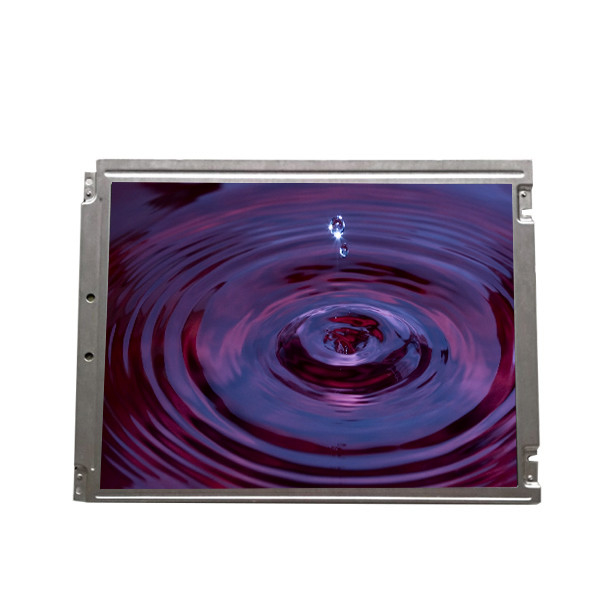

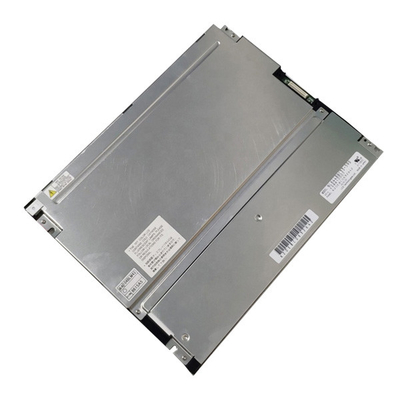

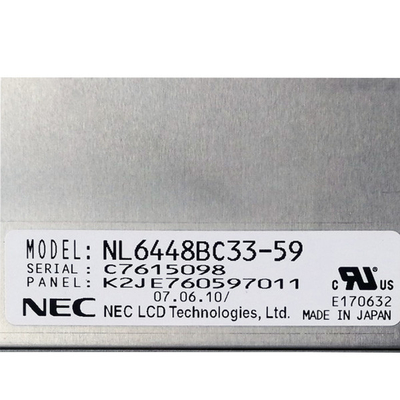

New NL6448BC33-59 10.4 inch 640*480 76PPI 262K LCD Screen Display Panel for NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-59 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448BC33-59 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Number Of Pixels: | 640(RGB)×480, VGA 76PPI | Display Area: | 211.2(H)×158.4(V) Mm |
| Response Time: | 8/25 (Typ.)(Tr/Td) Ms | Open Area: | 215.4(H)×161.8(V) Mm |
| Viewing Angle: | 70/70/45/55 (Typ.)(CR≥10) | Display Mode: | TN, Normally White Display, Transmissive |
| Mass: | 475/500g (Typ./Max.) | Voltage Supply: | 3.3/5.0V (Typ.) |
Product Description
New NL6448BC33-59 10.4 inch 640*480 76PPI 262K LCD Screen Display Panel for NEC
NL6448BC33-59 LCD Panel Product details :
| NEC LCD Screen NL6448BC33-59 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-59 |
| Screen Size | 10.4 inches |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 VGA 76PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)×158.4(V) mm |
| physical dimension | 243(H)×185.1(V) ×11(T) mm |
| Open area | 215.4(H)×161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 450 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 8/25 (Typ.)(Tr/Td) ms |
| Viewing angle | 70/70/45/55 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K, 43% NTSC |
| type of light source | CCFL [2 pcs], no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |

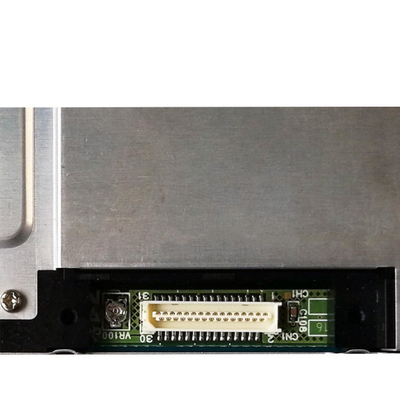

| Interface Type | 31 pins CMOS (1 ch, 6-bit), connector |
| Voltage supply | 3.3/5.0V (Typ.) |
| Application Environment | Working temperature: -10 ~ 70 °C; Storage temperature: -20 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| New NL6448BC33-59 10.4 inch 640*480 76PPI 262K LCD Screen Display Panel for NEC | |
NL6448BC33-59 LCD Screen Specification :
Installation Instructions: Not Included. Note: There is a layer of polarizer film under the protective film on the front of the panel. If the display appears blurry after installation, please remove the polarizer film.
Quality Assurance: Prior to dispatch, we conduct comprehensive quality checks and testing to ensure product reliability and performance.
Compatibility: This item is suitable for replacing touch panels that are broken, damaged, cracked, or otherwise unusable.
NL6448BC33-59 LCD Panel Shipping and Package :
NL6448BC33-59 LCD Screen Return Policy:
Warranty Coverage:
Used products: 90 days warranty.
New products: 180 days warranty.
Please note that this warranty does not cover consumables.
We provide a warranty for all of our products to ensure customer satisfaction and peace of mind.Buyers are responsible for bearing the shipping costs when returning both defective and non-defective items to us.Return items should be in the same good condition as when we originally sent them, without any damage.Approval by our team is required for all returned items, and they should be in their original box as when initially sent.In the case of receiving physically damaged items, please report this within 2 days of receipt.For all NON-Seller Mistake returns, a 15% re-stocking fee is applicable, and shipping and handling charges are non-refundable. (For example, if you bought the wrong item)
NL6448BC33-59 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of NL6448BC33-59?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NL6448BC33-59 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL6448BC33-59?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90days warranty .
