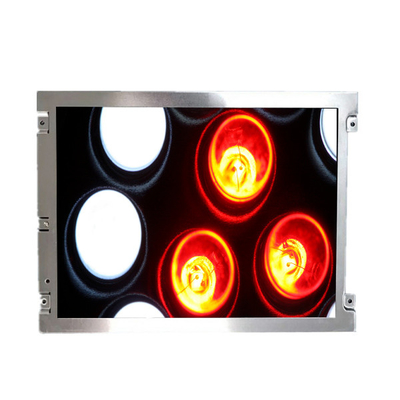

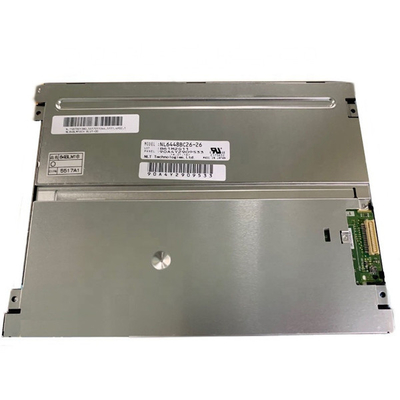

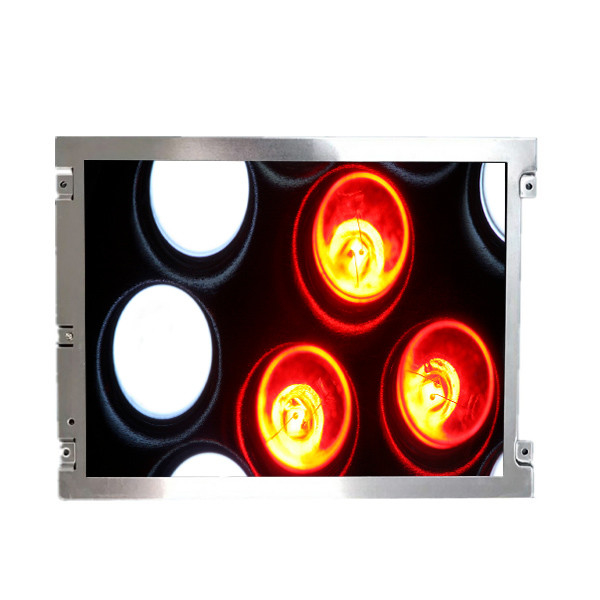

NL6448BC26-26 Original 8.4 inch 640*480 LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC26-26 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448BC26-26 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480 VGA 95PPI | Active Area: | 170.88(H)×128.16(V) Mm |
| Outline Dim.: | 235(W)×143(H)×5.2(D) Mm | Open Area: | 174.0(H)×131.4(V) Mm |
| Surface Treatment: | Clear, Hard Coating (3H) | Contrast: | 1000:1 (Typ.) (transmission) |
| Response Time: | 3/15 (Typ.)(Tr/Td) Ms | Weight: | 260/280g (Typ./Max.) |
Product Description
NL6448BC26-26 Original 8.4 inch 640*480 LCD Panel Display
NL6448BC26-26 LCD Panel Product details :
| NEC LCD Screen NL6448BC26-26 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC26-26 |
| Screen Size | 8.4 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 640(RGB)×480 VGA 95PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 170.88(H)×128.16(V) mm |
| physical dimension | 200(H)×152(V) ×8.7(T) mm |
| Open area | 174.0(H)×131.4(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 500 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (transmission) |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K, 40% NTSC |
| type of light source | WLED [3 strings], 70K hours, no driver |
| weight | 260/280g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 31 pins CMOS (1 ch, 6-bit), connector |
| Voltage supply | 3.3/5.0V (Typ.) |
| Application Environment | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC26-26 Original 8.4 inch 640*480 LCD Panel Display | |
NL6448BC26-26 LCD Screen Item Condition :
The item is classified as Grade A Condition, ensuring its optimal quality and functionality, with a guarantee of 100% working order. We take great care to provide products that meet high standards of performance and reliability.
However, please ensure that the connector location of this screen matches with the connector on your old screen before installation. This precaution ensures compatibility and seamless integration with your device. If you have any doubts or questions regarding compatibility, please don't hesitate to reach out to our customer service team for assistance. We are here to help you make an informed decision and ensure a smooth replacement process.
NL6448BC26-26 LCD Panel Shipping and Package :
NL6448BC26-26 LCD Screen Receiving Instructions :
Attention to Recipients:
Upon receiving your products from the express company, we kindly request that you thoroughly inspect the package in person. Should you notice any signs of damage to the package or the product itself, we urge you to refuse acceptance of the delivery. Additionally, please ensure to take clear and comprehensive photographs as evidence of the damage.
The photographs should be taken in two parts and distinctly separated. One set of photos should be kept for your records as evidence, while the other set should be provided to the express company as a third-party confirmation of the damage. By doing so, we can accurately assess the situation and determine the responsible party for the damaged product.
Please note that without third-party evidence, we may not be able to provide compensation for any damages incurred during shipping. Therefore, it is crucial to follow these instructions diligently to ensure a swift and fair resolution in the event of any issues with your delivery.
NL6448BC26-26 LCD Panel FAQ :
Q: Can I pay my order of NL6448BC26-26 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL6448BC26-26 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NL6448BC26-26 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
