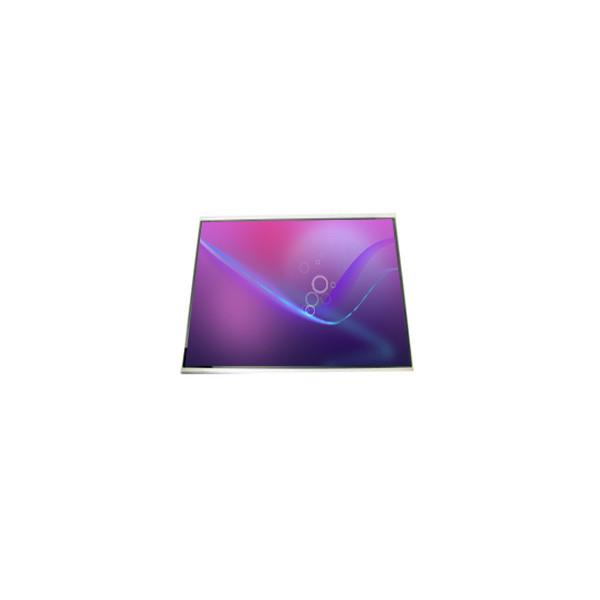

HSD050F8W2-C10 5.0 inch LCD Screen Display 480*854 LCD Module Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050F8W2-C10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050F8W2-C10 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×854, FWVGA 196PPI | Active Area: | 62.064(W)×110.422(H) Mm |
| Outline Dim.: | 65.1 × 117.9× 0.5 (H×V×D) | Treatment: | Without Polarizer |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Display Mode: | TN, Normally White, Transmissive |
| Application: | Mobile Phone | Driver IC List: | SuggestCOGNT35510 |
Product Description
HSD050F8W2-C10 5.0 inch LCD Screen Display 480*854 LCD Module Panel
HSD050F8W2-C10 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD050F8W2-C10 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 480(RGB)×854, FWVGA 196PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.064(W)×110.422(H) mm |
| Bezel Opening | - |
| Outline(mm) | 65.1 × 117.9× 0.5 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | - |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.25+0.25 mm |
| Transmissivity | 12.67% (Typ.)(without Polarizer) |
| Color Depth | 16.7M 60%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | SuggestCOGNT35510 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
HSD050F8W2-C10 LCD Panel Shipping and Package :
HSD050F8W2-C10 LCD Display Shipping Information :
Rigorous Testing: Rest assured, each HSD050F8W2-C10 LCD display undergoes rigorous testing procedures before leaving our facility. Our meticulous quality control measures ensure that only top-notch products reach our customers.
Fast Processing: Upon receiving your payment, we aim to expedite the shipping process promptly. Typically, your order will be shipped within 1-3 working days. We understand the importance of timely delivery and strive to minimize any delays in processing your order.
Shipping Timeframe: The shipping timeframe varies depending on your location. While we endeavor to provide accurate estimates, please note that shipping durations may vary between 7 to 30 days. Factors such as customs clearance, local postal services, and distance can influence delivery times. Rest assured, we'll keep you informed throughout the shipping process, and tracking information will be provided for your convenience.
HSD050F8W2-C10 LCD Display Return Policy :
Track Your Shipment: Begin the return process by verifying the tracking information provided on the respective tracking website. Ensure that you have all relevant details regarding the shipment status for smooth processing.
Communication Channels: Reach out to us through multiple communication channels including messages, emails, or via the trade manager platform. Our dedicated customer support team is available to assist you with your return inquiries and guide you through the necessary steps.
Thorough Inspection: Prior to initiating the return, carefully examine both the package and the item itself. We encourage thorough scrutiny to ensure that all components are intact and in their original condition.
Important Note: Please be aware that certain conditions may void the return policy. We do not guarantee returns for damages resulting from man-made defects, misuse, water damage, or any other forms of damage incurred after usage. It's essential to adhere to these guidelines to facilitate a seamless return process.
HSD050F8W2-C10 LCD Panel FAQ :
Q: Can I pay my goods HSD050F8W2-C10 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD050F8W2-C10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for HSD050F8W2-C10 ?
A: Of course!sample order is welcome !
Q: How to make payment for HSD050F8W2-C10 ?
A: We accept T/T , Paypal , western union .
