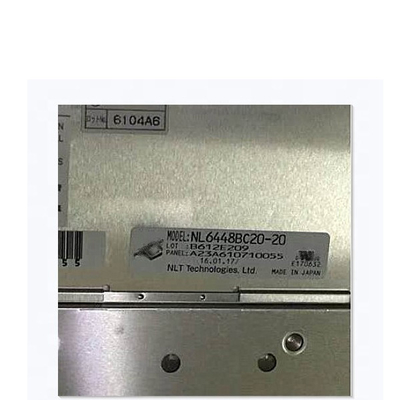

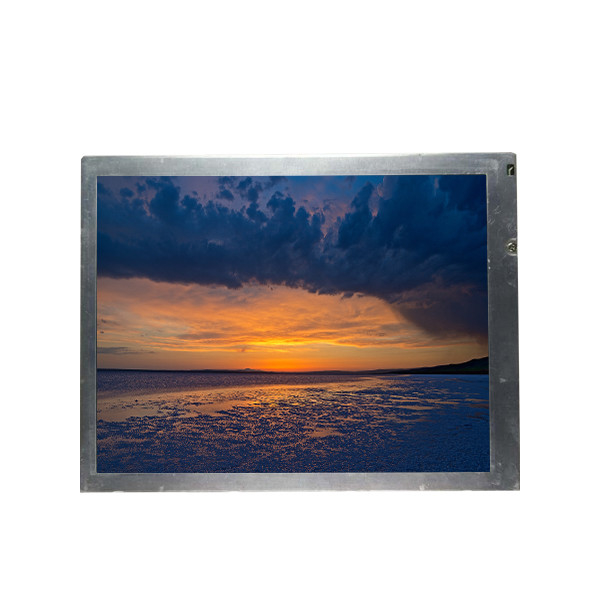

New NL6448BC20-20 6.5 inch 640*480 122PPI 60Hz Connector LCD Display Module for industry
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC20-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448BC20-20 | Screen Size: | 6.5" |
|---|---|---|---|
| Resolution: | 480×640(RGB), VGA 122PPI | Pixel Layout: | RGB Vertical Bar |
| Display Area: | 132.48(W)×99.36(H) Mm | Viewable Area: | 135.9(W)×102.8(H) Mm |
| Physical Dimension: | 153(W)×118(H) ×11(D) Mm | ||
Product Description
New NL6448BC20-20 6.5 inch 640*480 122PPI 60Hz Connector LCD Display Module for industry
NL6448BC20-20 LCD Panel Product details :
| NEC LCD Screen NL6448BC20-20 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC20-20 |
| Screen Size | 6.5 inch |
| Screen type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 VGA 122PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 132.48(W)×99.36(H) mm |
| Viewable area | 135.9(W)×102.8(H) mm |
| physical dimension | 153(W)×118(H)×11(D) mm |
| Surface treatment | Clear, Hard coating (2H), Antireflection |
| Panel brightness | 650 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Reaction time | 6/19 (Typ.)(Tr/Td) ms |
| Display color | 262K, 40% NTSC |
| type of light source | 2 pcs CCFL, 50K hours, without driver |
| working frequency | 60Hz |
| Panel weight | 205/215g (Typ./Max.) |
| Signal interface | CMOS (1 ch, 6-bit), 31 pins, connector |
| Drive screen voltage | 3.3/5.0V (Typ.)(VCC) |
| working environment | Work: -10 ~ 70 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| New NL6448BC20-20 6.5 inch 640*480 122PPI 60Hz Connector LCD Display Module for industry | |
